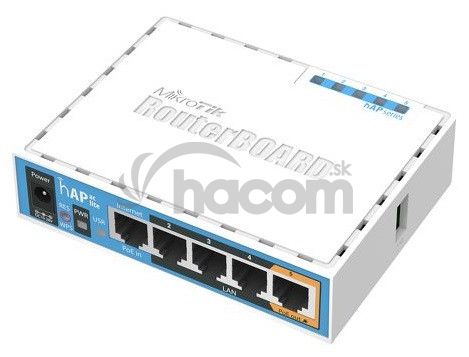

Mikrotik RB952Ui-5ac2nD, 650MHz, Hap, 5xLAN RB952Ui-5ac2nD

Mikrotik RB952Ui-5ac2nD, 650MHz, Hap, 5xLAN RB952Ui-5ac2nD

HAP ac lite

PRESENTATION VIDEO



OVERVIEW

The HAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz Frequencies at the same time.
Unit is equipped with a 650MHz CPU, 64MB RAM, five 10 / 100Mbps Ethernet ports (PoE output on port # 5), dual-chain 802.11b / g / n 2.4GHz wireless, single chain 802.11ac 5GHz wireless, USB port for 3G / 4G modem and a RouterOS L4 license.
We have two versions available - RB952Ui-5ac2nD (International) and RB952Ui-5ac2nD-US (USA). RB952Ui-5ac2nD-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz Frequencies. This lock can not be removed. RB952Ui-5ac2nD (International) supports 2412-2484MHz and 5150MHz - 5875MHz range.

TECHNICAL SPECS

Product code
* RB952Ui-5ac2nD
CPU nominal frequency
* 650 MHz
CPU core count
* 1
Size of RAM
* 64 MB
10/100 Ethernet ports
* 5
Wireless chip model
* QCA-9887-0-68BMQFN-TR-02-0
wireless standards
* 802.11a / n / ac
Secondary wireless chip model
* QCA9531
Number of USB ports
* 1
power Jack
* 1
PoE in
* Yes
PoE out
* Yes
Supported input voltage
* 10 V - 30 V
Dimensions
* 113 x 89 x 28mm
Operating System
* RouterOS
Operating temperature range
* -30 + 70 C °
license level
* 4
Antenna gain DBI
* 2
CPU
* QCA9531
Max Power consumption
* 8W
USB slot type
* USB type A
Number of chains
* 1
storage type
* FLASH
storage size
* 16 MB
