MIKROTIK RouterBOARD OmniTik UPA-5HnD - outdoor RBOmniTikUPA-5HnD

MIKROTIK RouterBOARD OmniTik UPA-5HnD - outdoor RBOmniTikUPA-5HnD

OVERVIEW

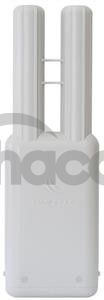

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device.

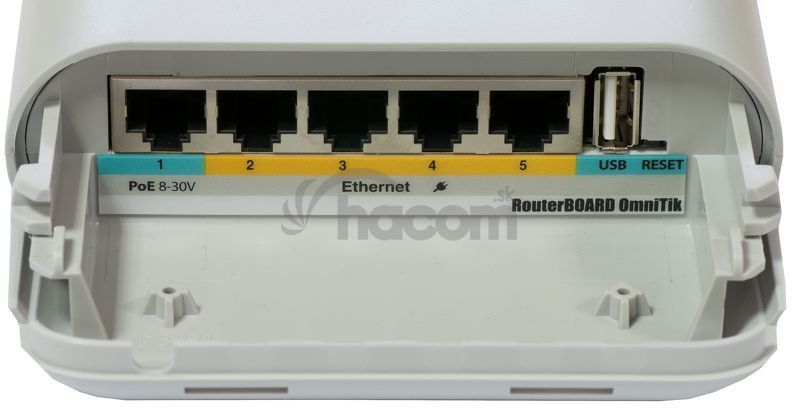

Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

LED signal indicators on it’s back are fully customisable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.

The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices (like SXT-5HPnD) with the same voltage as applied to the unit. Less power adapters to worry about!

Box contains: OmniTik UPA-5HnD, mounting loops, PoE injector, 24v 2.5A power adapter

TECH SPECS

Product code
*RBOmniTikUPA-5HnD
CPU nominal frequency
*600 MHz
CPU core count
*1
Size of RAM
*128 MB
Architecture
*MIPS-BE
10/100 Ethernet ports
*5
Wireless chip model
*AR9344
Wireless standards
*802.11a/n
Number of USB ports
*1
PoE in
*Yes
Supported input voltage
*11 V - 30 V
PoE out
*Yes
Voltage Monitor
*Yes
PCB temperature monitor
*Yes
Dimensions
*368x125x55mm
Operating System
*RouterOS
Tested ambient temperature
*-30 .. +70C
License level
*5
Antenna gain DBI
*7.5
CPU
*AR9344
Max Power consumption
*11W
USB slot type
*USB type A
Number of chains
*2
Storage type
*FLASH
Storage size
*16 MB
