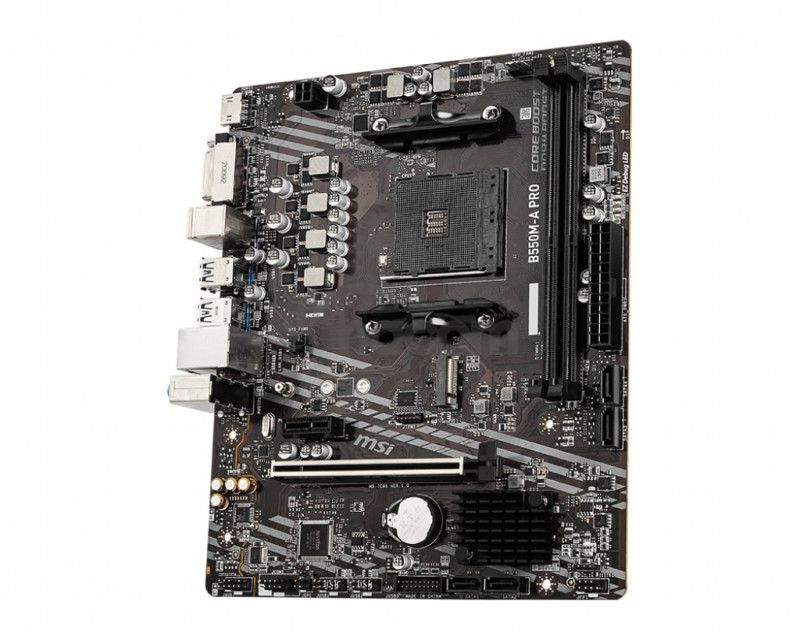

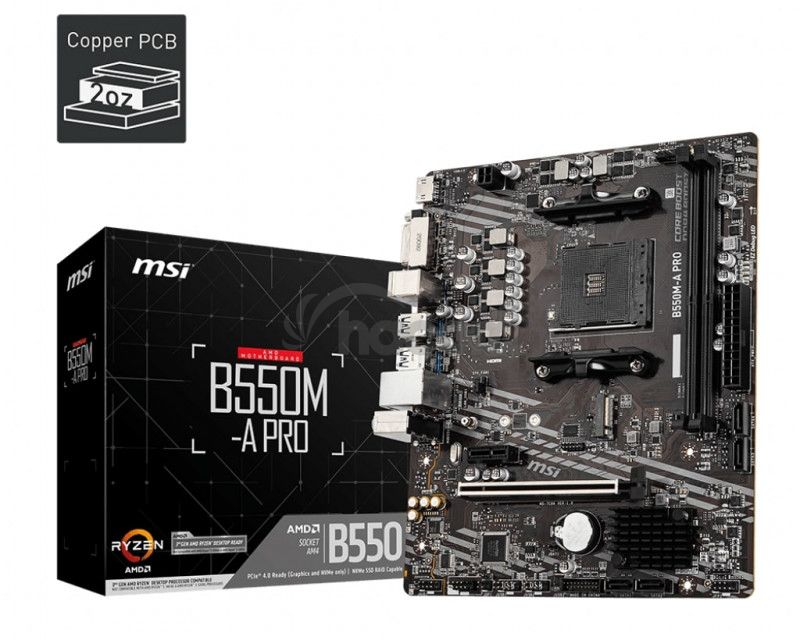

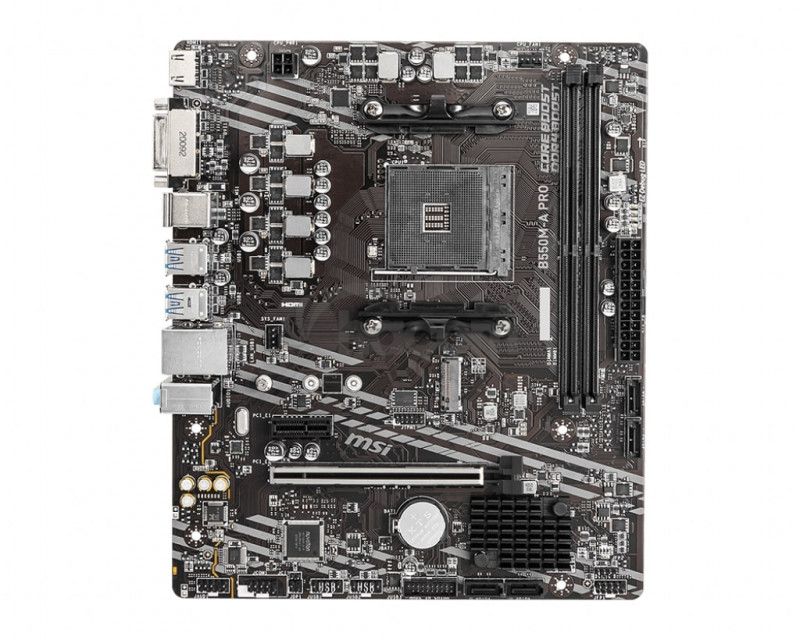

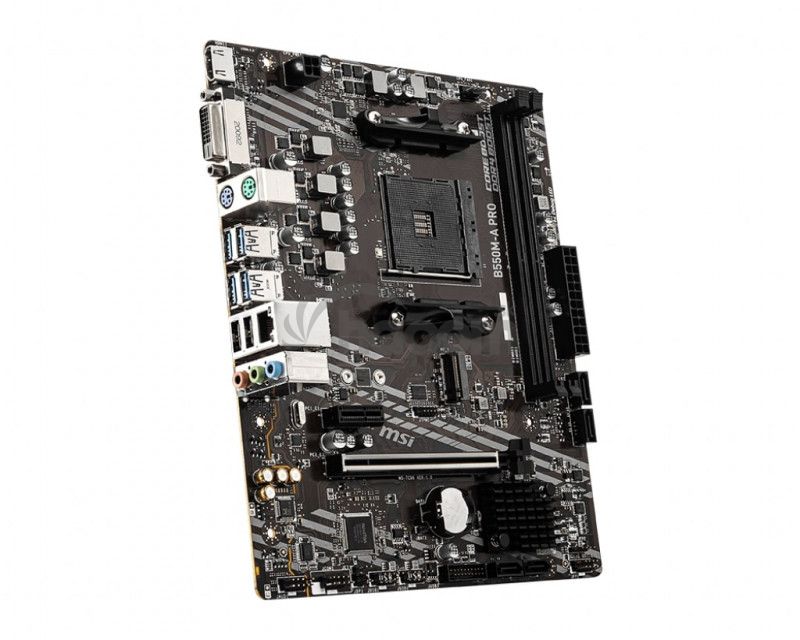

MSI B550-A PRE B550M-A PRO

MSI B550-A PRE B550M-A PRO

Chipset: AMD B550

Rozmerový formát: Micro-ATX Form Factor (236 mm x 200 mm)
Podpora pre procesory: AMD Ryzen ™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen ™ 5 3400G & Ryzen ™ 3 3200G) and AMD Ryzen ™ 4000 G-Series desktop processors
Pätica procesora: AM4

Pozícia na pamäti: 2x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz by JEDEC
* 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400 / 4600+ MHz by A-XMP OC MODE
Max.veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual channel memory architecture
* Supports non-ECC UDIMM memory
* Supports ECC UDIMM memory (non-ECC mode)
* Supports un-buffered memory

Grafická karta:
* Integrated Graphics Processor (na základe procesora)

Zvuková karta:
* Realtek® ALC892 / ALC897 Codec

Sieťová karta:
* 1x Realtek® RTL8111H Gigabit LAN controller

Rozširujúce sloty:
* 1x PCIe 3.0 x1 slot
* 1x PCIe 4.0 / 3.0 x16 slot

RAID radič: 0, 1, 10

SATA:
* 4x SATA 6Gb / s

M.2:
* 1x M.2 slots

USB:
* Zadné USB porty (celkom 6)
* 2x USB 2.0 ports
* 4x USB 3.2 Gen 1 5Gbps Type-A ports
* Predné USB porty (celkom 6)
* 2x USB 3.2 Gen 1 5Gbps ports
* 4x USB 2.0 ports

Interné porty:
* 1x 24-pin ATX main power connector
* 1x 4-pin ATX 12V power connector
* 4x SATA 6Gb / s connectors
* 1x M.2 slots (M-Key)
* 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
* 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
* 1x 4-pin CPU fan connector
* 1x 4-pin system fan connectors
* 1x Front panel audio connector
* 2x System panel connectors
* 1x Chassis Intrusion connector
* 1x TPM module connector
* 1x Clear CMOS jumper

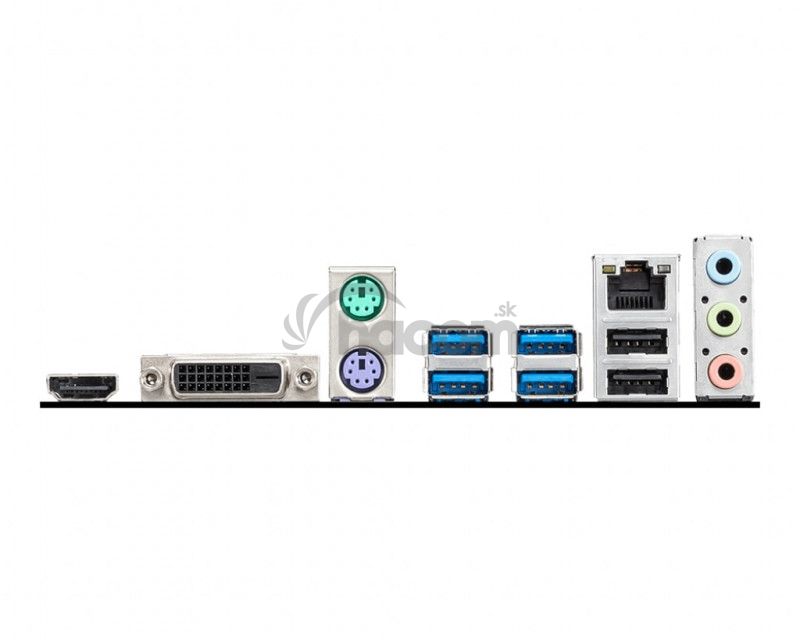

Externé porty:
* LAN port
* HDMI
* DVI-D
* Keyboard / Mouse
* 4x USB 3.2 Gen 1 5Gbps Type-A
* 2x USB 2.0 Ports
* Audio Connectors

Stránka výrobca: https://www.msi.com/Motherboard/B550M-A-PRO
