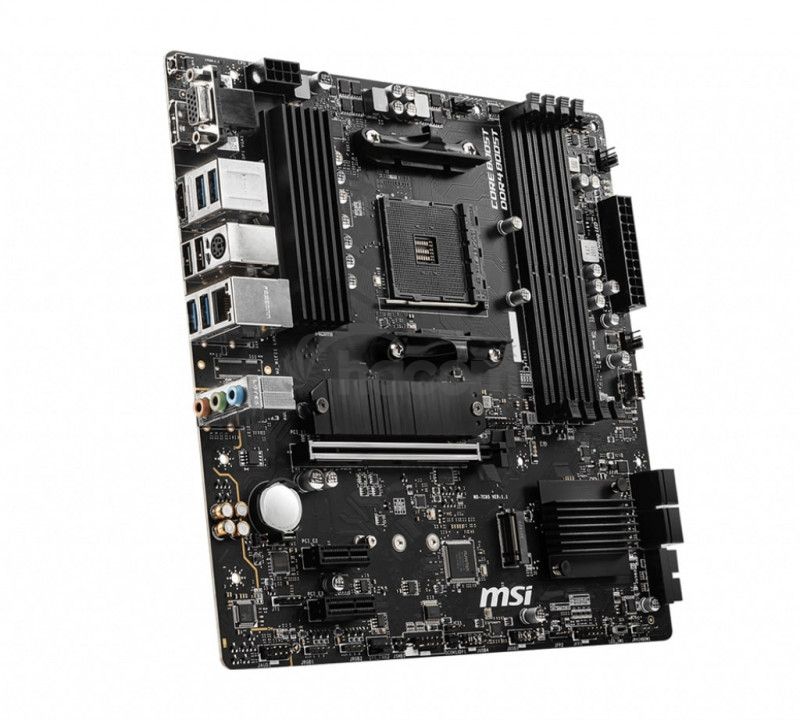

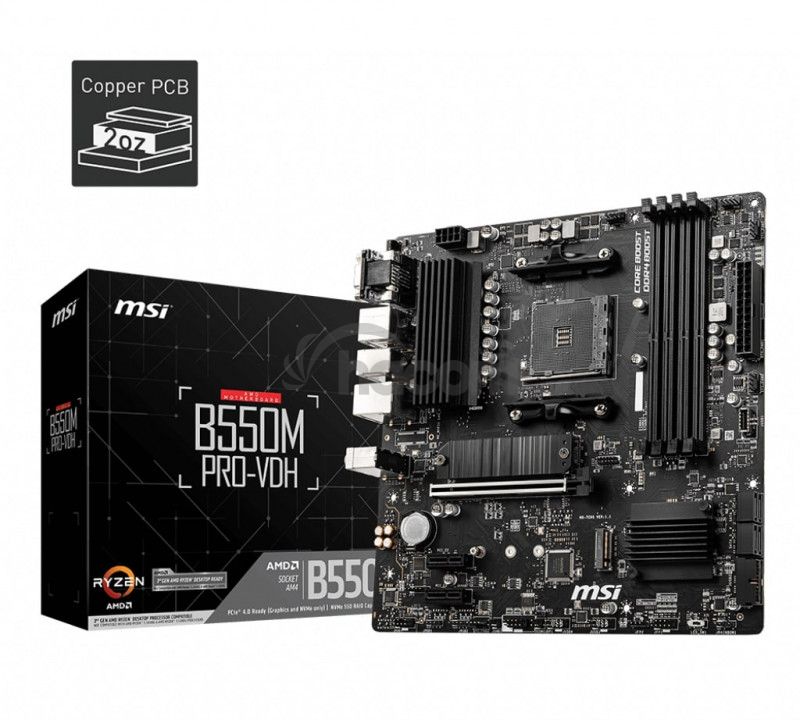

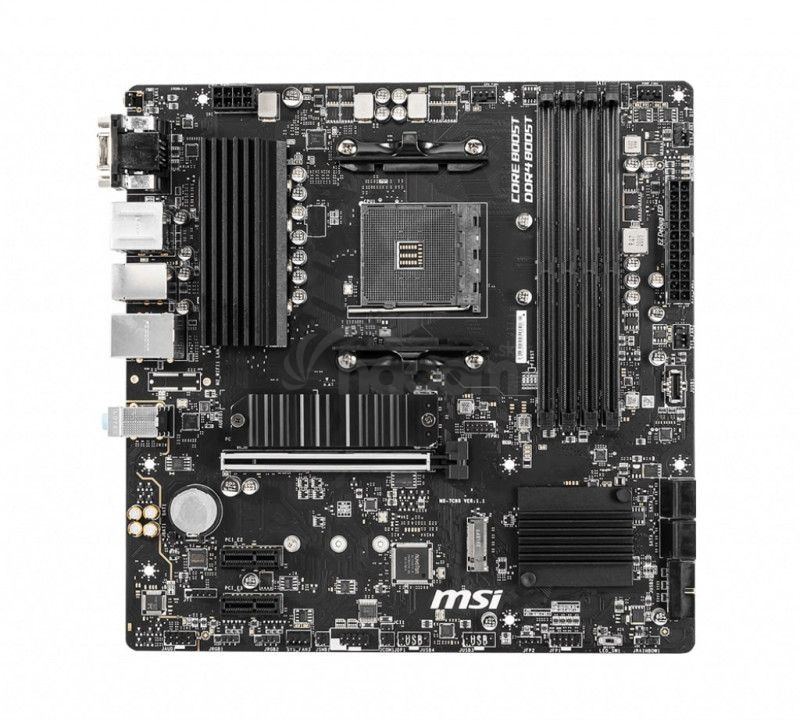

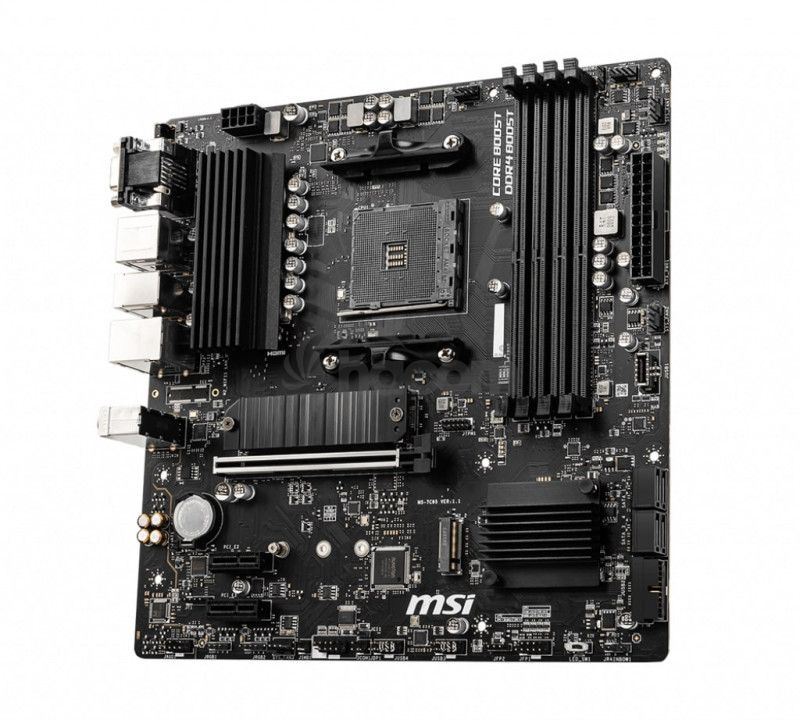

MSI B550 PRO-VDH B550M PRO-VDH

MSI B550 PRO-VDH B550M PRO-VDH

Chipset: AMD B550 chipset

Rozmerový formát: M-ATX Form Factor (244 mm x 244 mm)
Podpora pre procesory: AMD Ryzen ™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen ™ 5 3400G & Ryzen ™ 3 3200G) and AMD Ryzen ™ 4000 G-Series desktop processors
Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte:
* Supports DDR4 SDRAM 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz by JEDEC
* Supports DDR4 SDRAM 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400 + MHz by A-XMP OC MODE
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual channel memory architecture
* Non-ECC UDIMM memory
* ECC UDIMM memory
* Un-buffered memory

Grafická karta: Integrated Graphics Processor (na základe procesora)

Zvuková karta:
* Realtek® ALC892 / ALC897 Codec

Sieťová karta:
* 1x Realtek® 8111HN Gigabit LAN controller

Rozširujúce sloty:
* 1x PCIe 4.0 / 3.0 x16 slot (PCI_E1)
* 2x PCIe 3.0 x1 slots

RAID radič: 0, 1, 10

SATA:
* 4x SATA 6Gb / s connectors

M.2:
* 1x M2_1 slot PCIe 4.0 / 3.0 x4, Supports SATA 6Gb / s, Supports 2242/2260/2280 storage devices
* 1x M2_2 slot PCIe 3.0 x4, Supports 2242/2260/2280 storage devices

USB:
* Zadné USB porty (celkom 6)
* 4x USB 3.2 Gen 1 5Gbps Type-A ports
* 2x USB 2.0 ports
* Predné USB porty (celkom 7)
* 1x USB 3.2 Gen 1 5Gbps Type-C ports
* 2x USB 3.2 Gen 1 5Gbps ports
* 4x USB 2.0 ports

Interné porty:
* 1x 24-pin ATX main power connector
* 1x 8-pin ATX 12V power connector
* 4x SATA 6Gb / s connectors
* 2x M.2 slots (M-Key)
* 1x USB 3.2 Gen 1 5Gbps Type-C port
* 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
* 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
* 1x 4-pin CPU fan connector
* 1x 4-pin water-pump fan connector
* 3x 4-pin system fan connectors
* 1x Front panel audio connector
* 2x System panel connectors
* 1x Serial port connector
* 1x Chassis Intrusion connector
* 2x 4-pin RGB LED connectors
* 2x 3-pin RAINBOW LED connectors
* 1x TPM module connector
* 1x Clear CMOS jumper

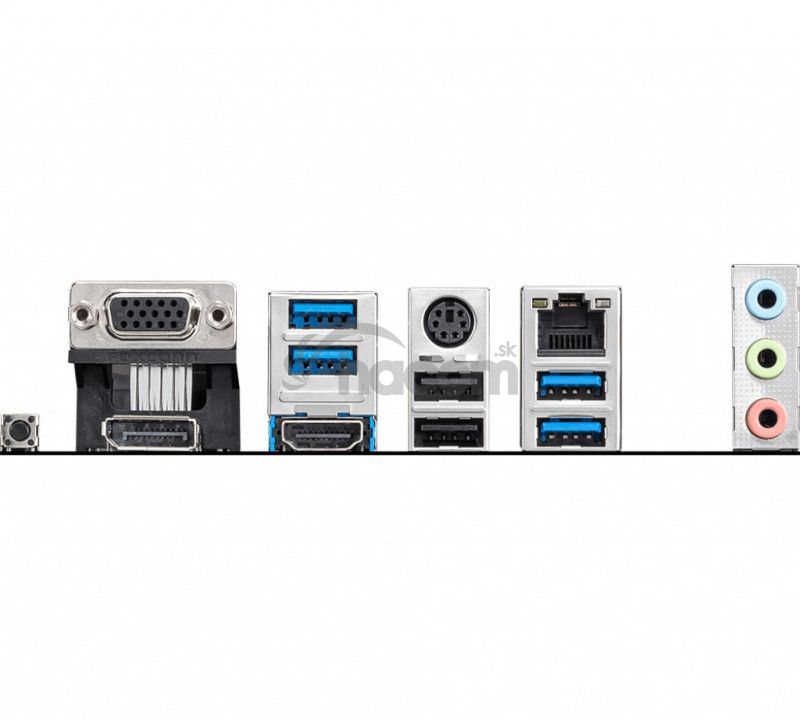

Externé porty:
* VGA
* 4x USB 3.2 Gen 1 5Gbps Type-A
* Keyboard / Mouse
* 1x LAN
* Flash BIOS button
* DisplayPort
* HDMI
* 2x USB 2.0
* 3x HD Audio Connectors

Stránka výrobca: https://www.msi.com/Motherboard/B550M-PRO-VDH
