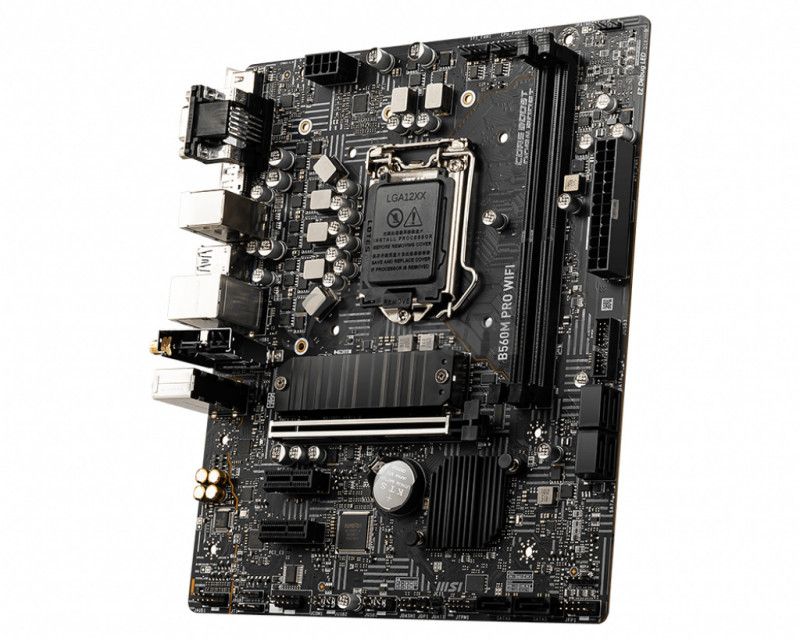

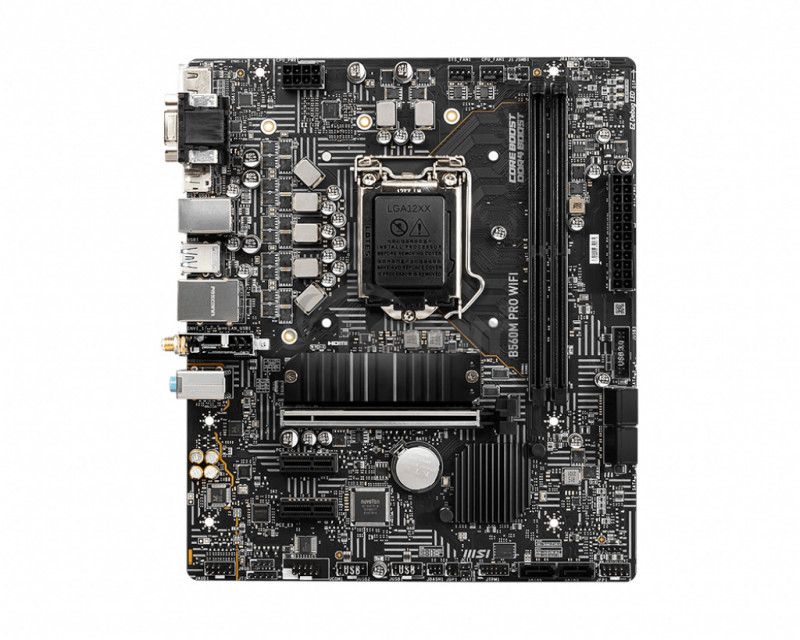

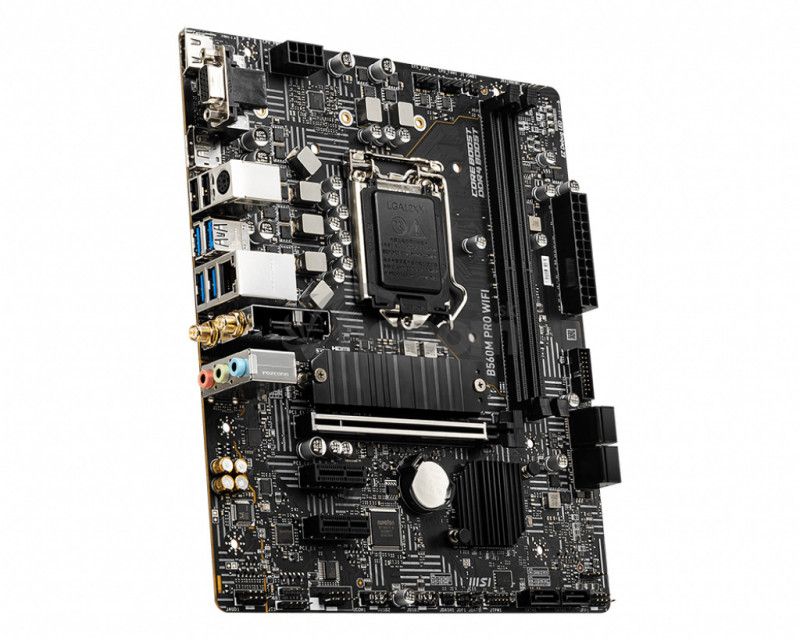

MSI B560M PRE WIFI B560M PRO WIFI

MSI B560M PRE WIFI B560M PRO WIFI

Chipset: Intel B560 chipset

Rozmerový formát: mATX Form Factor (23.6 cm x 20.3 cm)
Podpora pre procesory: 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Pätica procesora: LGA1200

Pozícia na pamäti: 2x DDR4 memory slots, Dual-Channel mode
Podpora pre pamäte:
*Podpora 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU
*Podpora 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU
Max.veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: non-ECC, XMP

Grafická karta: (na základe procesora)
*1x VGA port, maximálne rozlíšenie 2048x1280 @ 60Hz, 1920x1200 @ 60Hz
*1x DisplayPort 1.4 port, maximálne rozlíšenie 4K 60Hz
*1x HDMI 2.0b with HDR port, maximálne rozlíšenie 4K 60Hz

Zvuková karta: Realtek ALC897 Codec
*7.1-Channel High Definition Audio

Sieťová karta:
*1x Realtek 8125B 2.5Gbps LAN controller
*Intel Wi-Fi 6 AX201 - 802.11 a/ b/ g/ n/ ac/ ax
*Bluetooth 5.1

Rozširujúce sloty:
*1x PCIe x16 slot
*2x PCIe 3.0 x1 slots

SATA: 6x SATA 6Gb/s konektory

M.2: 1x M.2 slot (M-Key)

USB:
* Interné:
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 konektory (supports additional 4 USB 2.0 ports)
* Externé:
*2x USB 2.0
*4x USB 3.2 Gen 1 5Gbps Type-A


Interné porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*6x SATA 6Gb/s konektory
*1x M.2 slot (M-Key)
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 konektory (supports additional 4 USB 2.0 ports)
*1x 4-pin CPU fan connector
*1x 4-pin system fan connector
*1x Front panel audio konektor
*2x System panel connectors
*1x Chassis Intrusion connector
*1x Clear CMOS jumper
*1x TPM module connector
*1x Serial port connector
*1x Tuning Controller Connector

Externé porty:
*1x VGA
*1x HDMI
*1x DisplayPort
*2x USB 2.0
*4x USB 3.2 Gen 1 5Gbps Type-A
*1x LAN port
*Keyboard / Mouse
*WiFi / Bluetooth
*Audio connector


BIOS: UEFI AMI BIOS, 1x 256 Mb flash

Stránka výrobcu: http://www.msi.com/Motherboard/B560M-PRO-WIFI/Overview
