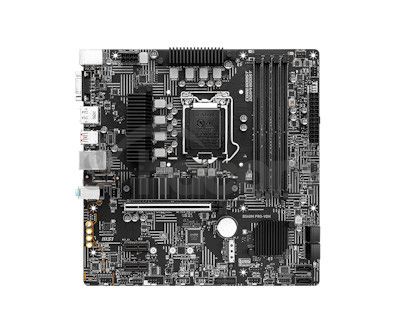

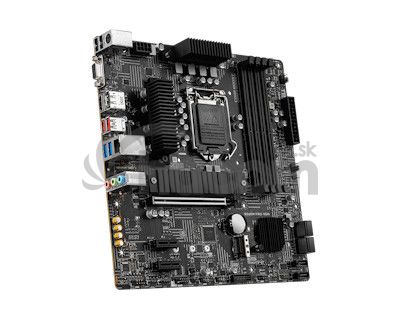

MSI B560M PRO-VDH B560M PRO-VDH

MSI B560M PRO-VDH B560M PRO-VDH

Chipset: Intel B560 chipset

Rozmerový formát: Micro-ATX (24.4 cm x 24.4 cm)
Podpora pre procesory: 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 4x DDR4 memory slots, Dual-Channel mode
Podpora pre pamäte:
*DDR4 2133/ 2666/ 2933 MHz pre 10th Gen Intel CPU (by JEDEC & POR)
*DDR4 2133/ 2666/ 2933/ 3200 MHz pre 11th Gen Intel CPU (by JEDEC & POR)
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: XMP

Grafická karta:
*1x HDMI 2.0b
*1x DisplayPort 1.4
*1x VGA port

Zvuková karta: Realtek AL897 Codec
*7.1-Channel High Definition Audio

Sieťová karta: 1x Realtek 8125B 2.5Gbps LAN controller

Rozširujúce sloty:
*1x PCIe x16 slot
*2x PCIe 3.0 x1 slots

SATA: 6x SATA 6Gb/s ports

M.2: 2x M.2 slot

USB:
* Interné:
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
*2x USB 2.0 konektory (supports additional 4 USB 2.0 ports)
* Externé:
*2x USB 3.2 Gen 2 10Gbps Type-A
*2x USB 3.2 Gen 1 5Gbps Type-A
*2x USB 2.0


Interné porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*6x SATA 6Gb/s konektory
*2x M.2 slots (M-Key)
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
*2x USB 2.0 konektory (supports additional 4 USB 2.0 ports)
*1x 4-pin CPU fan connector
*1x 4-pin water-pump fan connector
*2x 4-pin system fan connectors
*1x Front panel audio konektor
*2x System panel connectors
*1x Chassis Intrusion connector
*1x Clear CMOS jumper
*1x TPM module connector
*1x Serial port connector
*1x Tuning Controller Connector

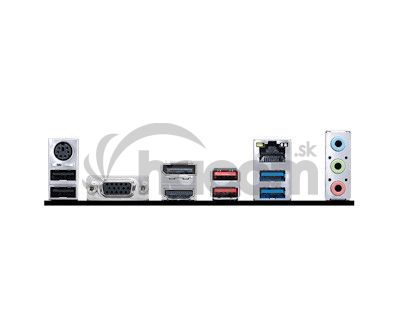

Externé porty:
*1x VGA
*1x DisplayPort
*1x HDMI
*1x LAN port
*2x USB 3.2 Gen 2 10Gbps Type-A
*2x USB 3.2 Gen 1 5Gbps Type-A
*2x USB 2.0
*Keyboard / Mouse
*Audio connector

BIOS: UEFI AMI BIOS, 1x 256 Mb flash

Stránka výrobcu: http://www.msi.com/Motherboard/B560M-PRO-VDH/Overview
