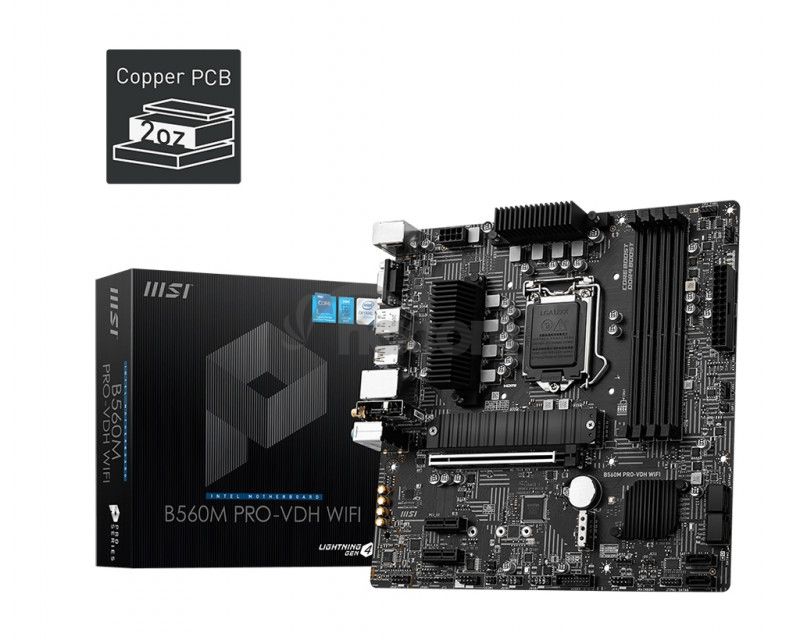

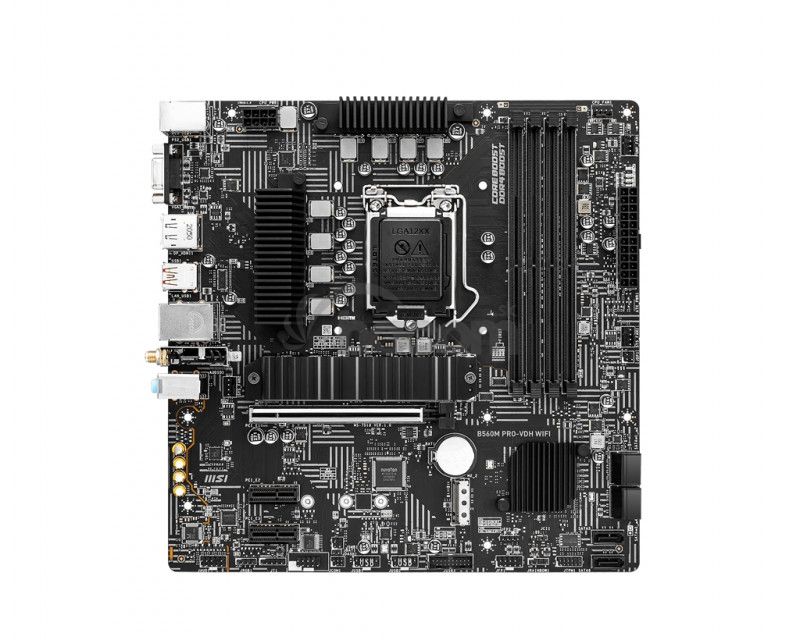

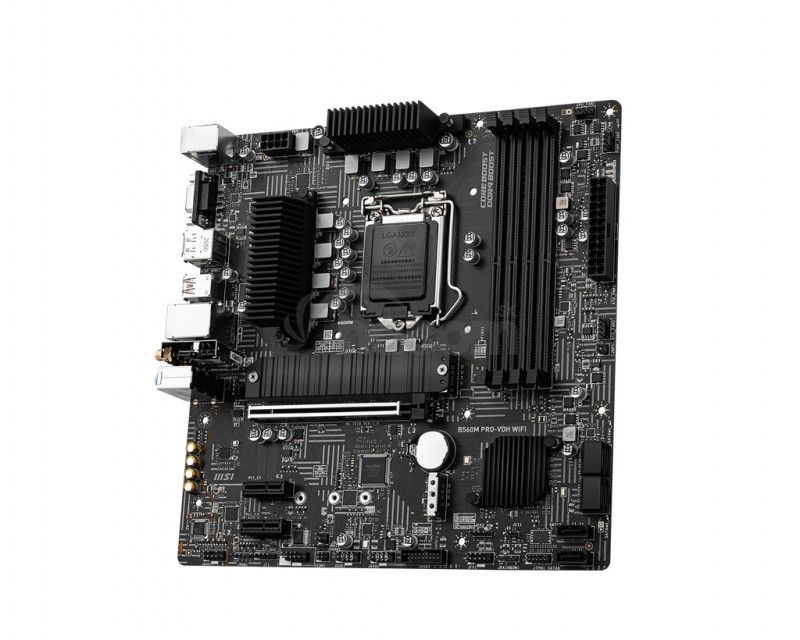

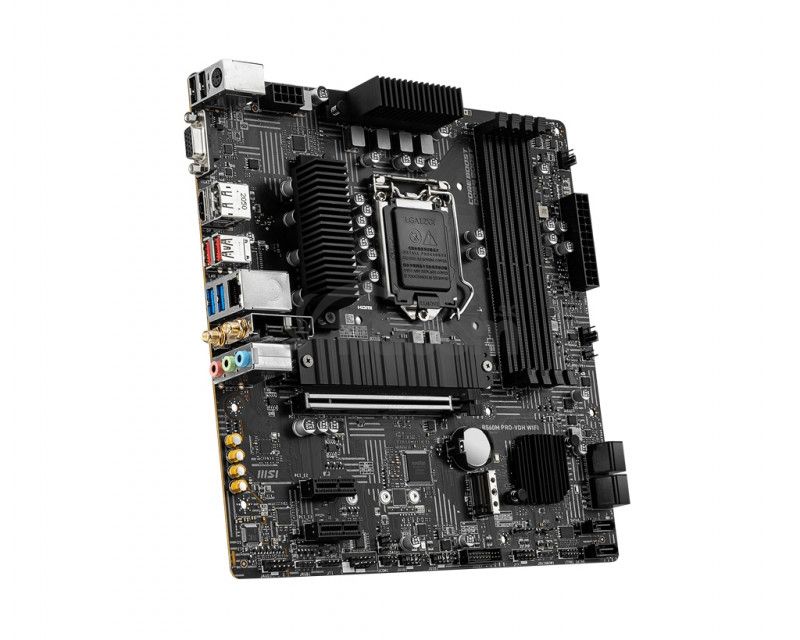

MSI B560M PRO-VDH WIFI B560M PRO-VDH WIFI

MSI B560M PRO-VDH WIFI B560M PRO-VDH WIFI

Chipset: Intel B560 chipset

Rozmerový formát: Micro-ATX Form Factor
Podpora pre procesory: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Pätica procesora: LGA1200

Pozícia na pamäti: 4x DDR4 memory slots
Podpora pre pamäte:
*Supports 1R 2133/ 2666/ 2933 MHz pre 10th Gen Intel CPU (by JEDEC & POR)
*Supports 1R 2133/ 2666/ 2933/ 3200 MHz pre 11th Gen Intel CPU (by JEDEC & POR)

Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte:
*Supports Dual-Channel mode
*Supports non-ECC, un-buffered memory
*Supports Intel Extreme Memory Profile (XMP)
*Max overclocking frequency: 1DPC 1R Max. speed up to 5066 MHz, 1DPC 2R Max. speed up to 4600+ MHz, 2DPC 1R Max.

Grafická karta:
*1x HDMI 2.0b s portom HDR, podporou a maximálnou resolution of 4K 60Hz
*1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
*1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz

Zvuková karta:
*Realtek AL897 Codec

Sieťová karta:
*1x Realtek 8125B 2.5Gbps LAN controller
*Intel Wi-Fi 6 AX201

Rozširujúce sloty:
*1x PCIe x16 slot (From CPU)
*PCI_E1 (From CPU) - Support up to PCIe 4.0 for 11th Gen Intel CPU, Support up to PCIe 3.0 for 10th Gen Intel CPU
*2x PCIe 3.0 x1 slots (From B560 chpiset)

RAID radič: nie

SATA:
*6x SATA 6Gb/s ports

M.2:
*2x M.2 slot (Key M)

USB:
* zadné USB porty ( celkom 6 )
*2x USB 3.2 Gen 2 10Gbps Type-A ports
*2x USB 3.2 Gen 1 5Gbps ports
*2x USB 2.0 Type-A ports
* predné USB porty ( celkom 6 )
*2x USB 3.2 Gen 1 5Gbps ports
*4x USB 2.0 ports

Interné porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*6x SATA 6Gb/s konektory
*2x M.2 slots (M-Key)
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
*2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
*1x 4-pin CPU fan connector
*1x 4-pin water-pump fan connector
*2x 4-pin system fan connectors
*1x Front panel audio connector
*2x System panel connectors
*1x Chassis Intrusion connector
*1x Clear CMOS jumper
*1x TPM module connector
*1x Serial port connector
*1x Tuning Controller Connector
*1x 4-pin RGB LED connector
*1x 3-pin RAINBOW LED connector
*4x EZ Debug LED

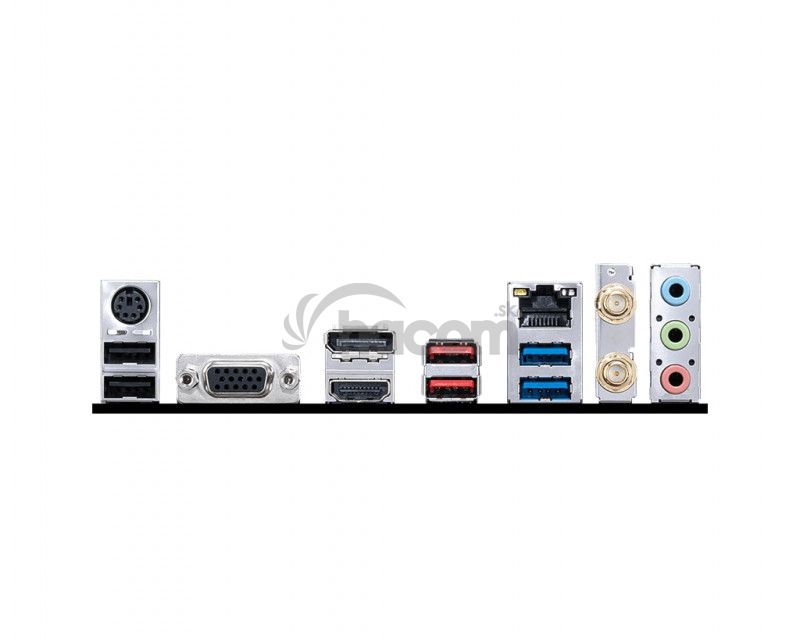

Externé porty:
*Keyboard / Mouse connector
*1x VGA
*1x DisplayPort
*LAN port
*WiFi / Bluetooth
*Audio connector
*4x USB 2.0
*1x HDMI
*2x USB 3.2 Gen 1 5Gbps Type-A

BIOS: 1x 256 Mb flash, UEFI AMI BIOS, ACPI 6.2, SMBIOS 3.0, Multi-language

Stránka výrobcu: https://www.msi.com/Motherboard/B560M-PRO-VDH-WIFI/Specification
