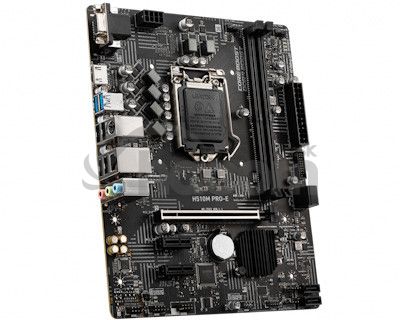

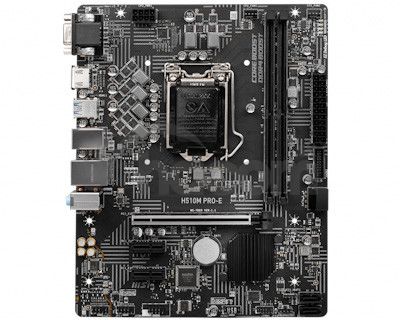

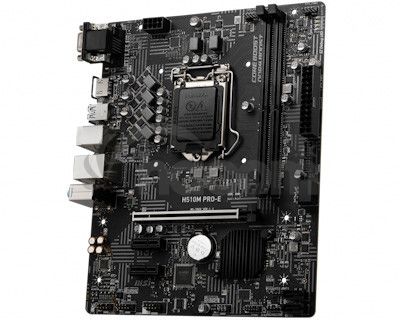

MSI H510M PRO-E H510M PRO-E

MSI H510M PRO-E H510M PRO-E

Chipset: Intel H510 Chipset

Rozmerový formát: mATX (23.6 cm x 19.0 cm)
Podpora pre procesory: 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 2x DDR4 memory slots, Dual-Channel mode
Podpora pre pamäte:
*DDR4 2133/ 2666/ 2933 MHz pre 10th Gen Intel CPU (by JEDEC & POR)
*DDR4 2133/ 2666/ 2933/ 3200 MHz pre 11th Gen Intel CPU (by JEDEC & POR)
Max.veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: XMP

Grafická karta: (na základe procesora)
*1x VGA port
*1x HDMI 1.4 port

Zvuková karta: Realtek ALC897 Codec
*7.1-Channel High Definition Audio

Sieťová karta: 1x Realtek RTL8111 Gigabit LAN controller

Rozširujúce sloty:
*1x PCIe x16 slot
*2x PCIe 3.0 x1 slots

SATA: 4x SATA 6Gb/s ports

USB:
* Interné:
*1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
*1x USB 2.0 connector (support additional 2 USB ports)
* Externé:
*2x USB 3.2 Gen 1 5Gbps Type-A
*4x USB 2.0



Interné porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*4x SATA 6Gb/s konektory
*1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
*1x USB 2.0 connector (support additional 2 USB ports)
*1x 4-pin CPU fan connector
*1x 4-pin system fan connector
*1x Front panel audio konektor
*2x System panel connectors
*1x Serial port connector
*1x Chassis Intrusion connector
*1x Clear CMOS jumper
*1x TPM module connector

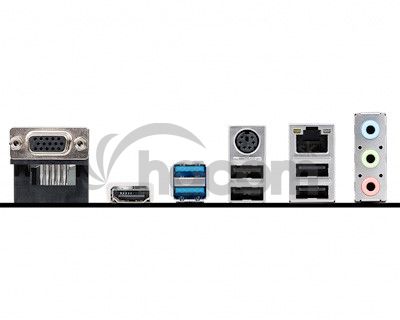

Externé porty:
*1x VGA
*1x HDMI
*2x USB 3.2 Gen 1 5Gbps Type-A
*4x USB 2.0
*1x LAN port
*Audio connector
*Mouse / Keyboard

BIOS: AMI BIOS 7D23v11

Stránka výrobcu: http://www.msi.com/Motherboard/H510M-PRO-E/Overview
