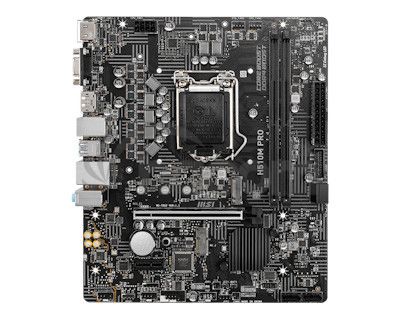

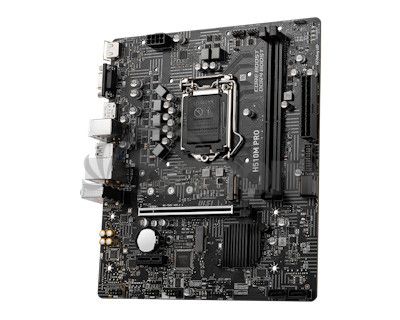

MSI H510M PRO H510M PRO

MSI H510M PRO H510M PRO

Chipset: Intel H510 Chipset

Rozmerový formát: mATX (23.6 cm x 20.2 cm)
Podpora pre procesory: 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 2x DDR4 memory slots, Dual-Channel mode
Podpora pre pamäte:
*DDR4 2133/ 2666/ 2933 MHz pre 10th Gen Intel CPU (by JEDEC & POR)
*DDR4 2133/ 2666/ 2933/ 3200 MHz pre 11th Gen Intel CPU (by JEDEC & POR)
Max.veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: XMP

Grafická karta: (na základe procesora)
*1x HDMI 2.0b
*1x VGA port
*1x DisplayPort 1.4

Zvuková karta: Realtek ALC892/ ALC897 Codec
*7.1-Channel High Definition Audio

Sieťová karta: 1x Intel I219V 1Gbps LAN controller

Rozširujúce sloty:
*1x PCIe x16 slot
*1x PCIe 3.0 x1

SATA: 4x SATA 6Gb/s ports

M.2: 1x M.2 slot

USB:
* Interné:
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*1x USB 2.0 konektor (supports additional 2 USB 2.0 ports)
* Externé:
*4x USB 2.0
*2x USB 3.2 Gen 1 5Gbps Type-A

Interné porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*4x SATA 6Gb/s konektory
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*1x USB 2.0 konektor (supports additional 2 USB 2.0 ports)
*1x 4-pin CPU fan connector
*1x 4-pin system fan connector
*1x Front panel audio konektor
*2x System panel connectors
*1x Serial port connector
*1x Chassis Intrusion connector
*1x Clear CMOS jumper
*1x TPM module connector

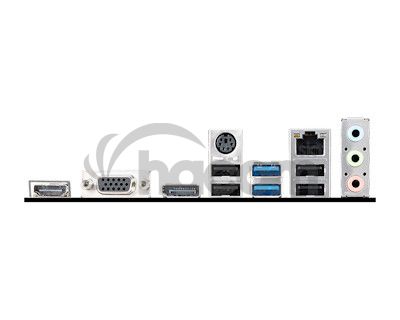

Externé porty:
*1x HDMI 2.0b
*1x VGA port
*1x DisplayPort 1.4
*4x USB 2.0
*2x USB 3.2 Gen 1 5Gbps Type-A
*1x LAN port
*Mouse / Keyboard
*Audio connector

BIOS: AMI BIOS, 7D22v18

Stránka výrobcu: http://www.msi.com/Motherboard/H510M-PRO/Overview
