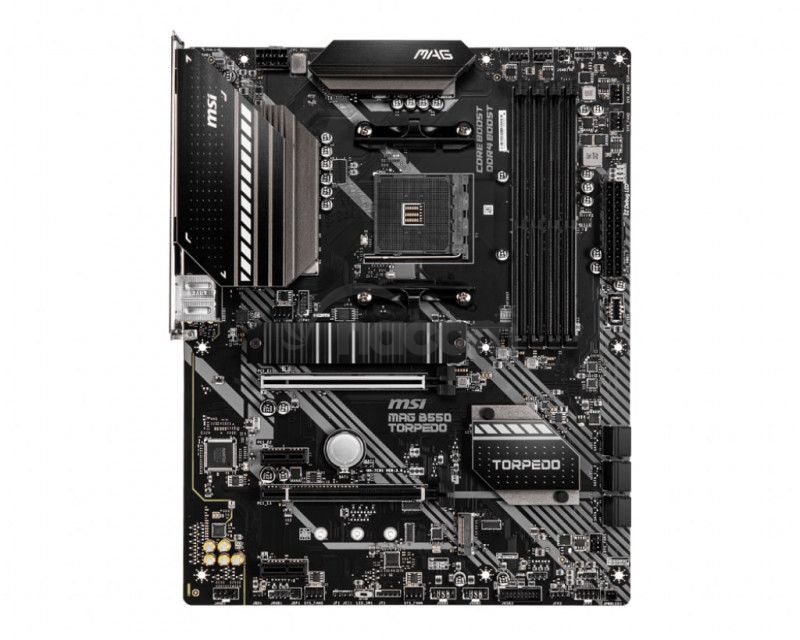

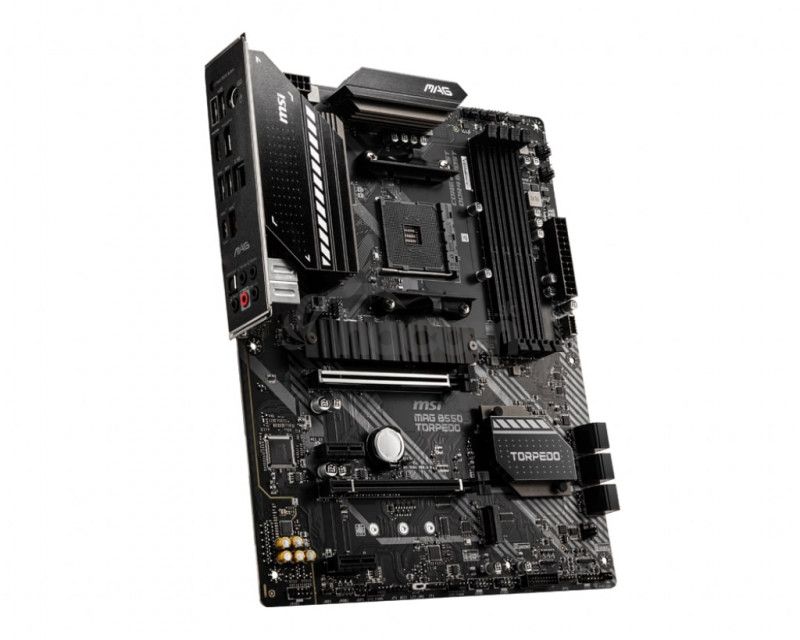

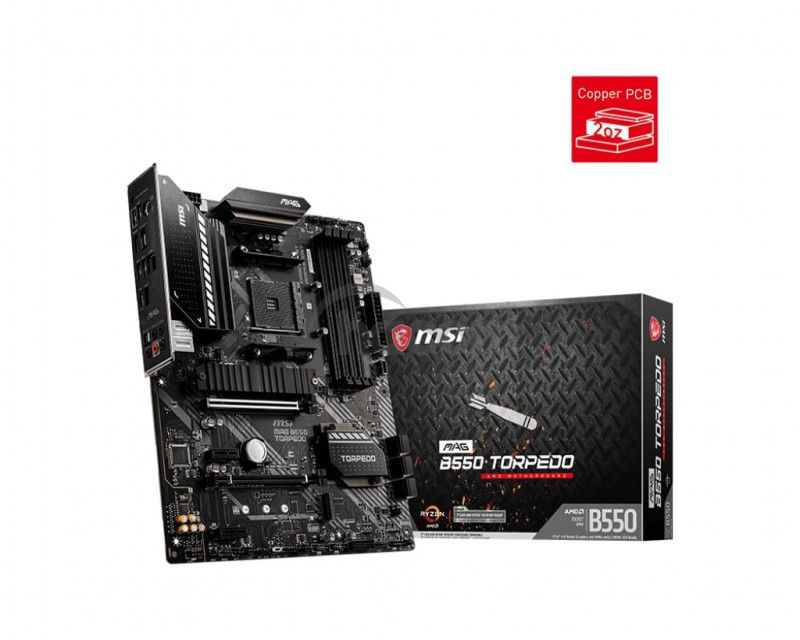

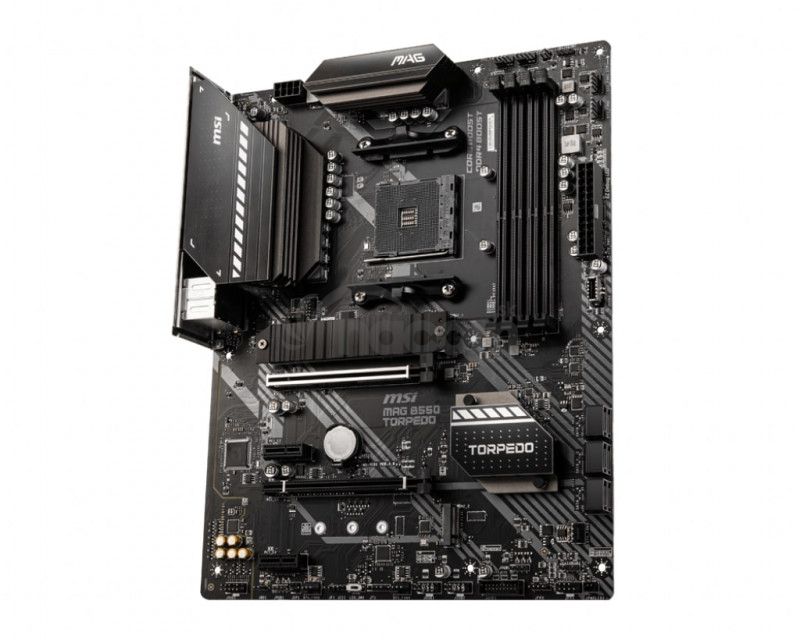

MSI MAG B550 TORPEDO MAG B550 TORPEDO

MSI MAG B550 TORPEDO MAG B550 TORPEDO

Chipset: AMD B550

Rozmerový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pre procesory: 3rd Gen AMD Ryzen ™ Desktop Processors and AMD Ryzen ™ 4000 G-Series Desktop Processors
Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte:
* Supports DDR4 SDRAM 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz by JEDEC
* Supports DDR4 SDRAM 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600/4733/4800 / 4866+ MHz by A-XMP OC MODE
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual channel memory architecture
* Non-ECC UDIMM memory
* ECC UDIMM memory (non-ECC mode)
* Un-buffered memory

Grafická karta: Integrated Graphics Processor (na základe procesora)

Multi-GPU: 2-Way AMD CrossFire ™ Technology

Zvuková karta:
* Realtek® ALC1200 Codec

Sieťová karta:
* Realtek® RTL8125B 2.5Gbps LAN controller

Rozširujúce sloty:
* 1x PCIe 4.0 / 3.0 x16 slot (PCI_E1)
* 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
* 2x PCIe 3.0 x1 slots

RAID radič: 0, 1, 10

SATA:
* 6x SATA 6Gb / s connectors

M.2:
* 1x M2_1 PCIe 4.0 / 3.0 x4 1, Supports SATA 6Gb / s, Supports 2242/2260/2280/22110 storage devices
* 1x M2_2 slot Supports PCIe 3.0x4, Supports 2242/2260/2280 storage devices

USB:
* Zadné USB porty (celkom 6)
* 2x USB 2.0 ports
* 1x USB 3.2 Gen 2 10Gbps Type-C port
* 1x USB 3.2 Gen 2 10Gbps port
* 2x USB 3.2 Gen 1 5Gbps Type-A ports
* Predné USB porty (celkom 7)
* 2x USB 3.2 Gen 1 5Gbps ports
* 1x USB 3.2 Gen 1 5Gbps Type-C port
* 4x USB 2.0 ports

Interné porty:
* 1x 24-pin ATX main power connector
* 1x 8-pin ATX 12V power connector
* 6x SATA 6Gb / s connectors
* 2x M.2 slots (M-Key)
* 1x USB 3.2 Gen 1 5Gbps Type-C port
* 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
* 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
* 1x 4-pin CPU fan connector
* 1x 4-pin water-pump fan connector
* 6x 4-pin system fan connectors
* 1x Front panel audio connector
* 2x System panel connectors
* 1x Chassis Intrusion connector
* 2x 4-pin RGB LED connectors
* 2x 3-pin RAINBOW LED connectors
* 1x TPM module connector
* 1x Clear CMOS jumper

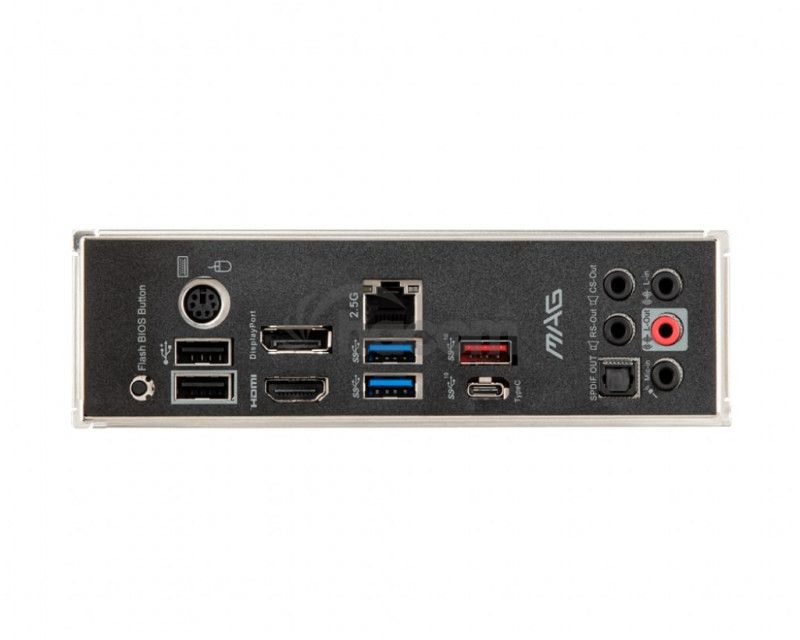

Externé porty:
* PS / 2 Combo Port
* 1x DisplayPort
* 1x 2.5G LAN Port
* 1x USB 3.2 Gen 2 10Gbps (Type-A)
* HD Audio Connectors
* Flash BIOS Button
* 2x USB 2.0 Port
* 1x HDMI Port
* 2x USB 3.2 Gen 1 5Gbps (Type-A)
* 1x USB 3.2 Gen 2 10Gbps (Type-C)
* Optical S / PDIF OUT

Stránka výrobca: https://www.msi.com/Motherboard/MAG-B550-TORPEDO
