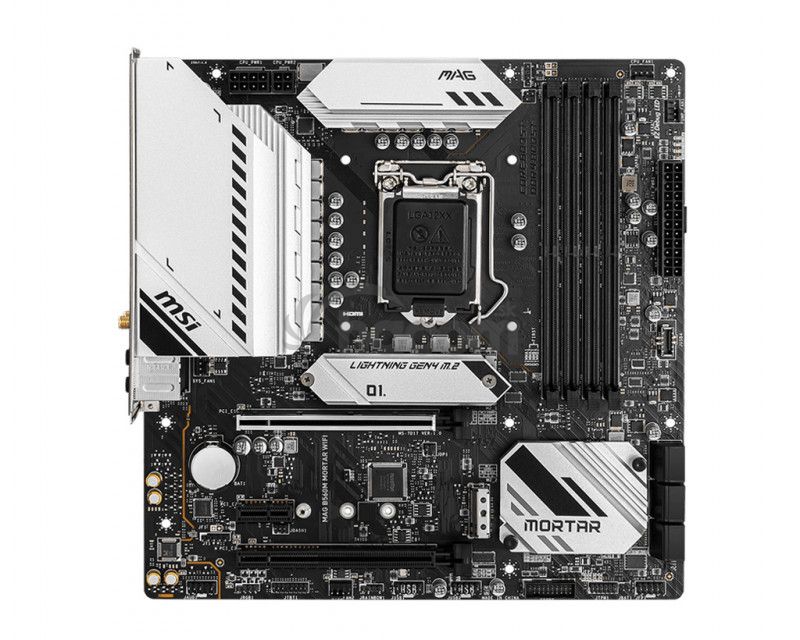

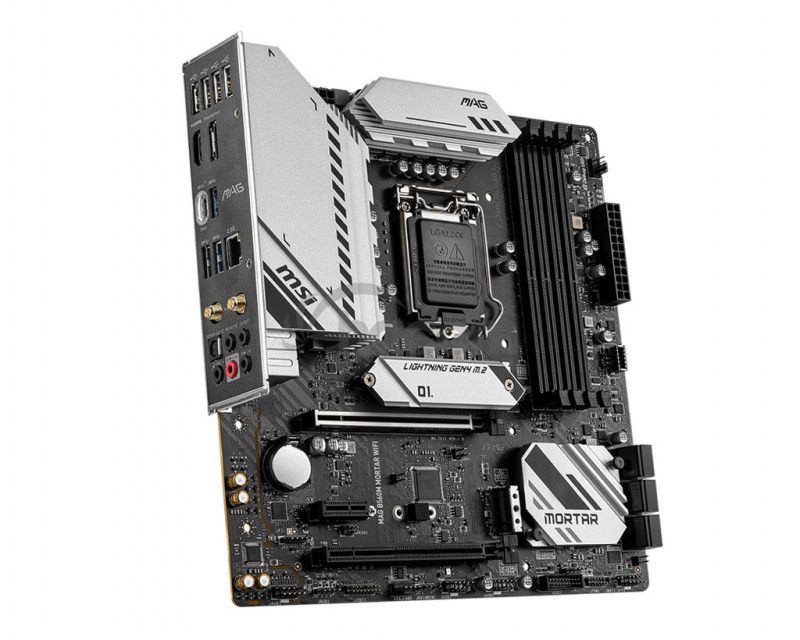

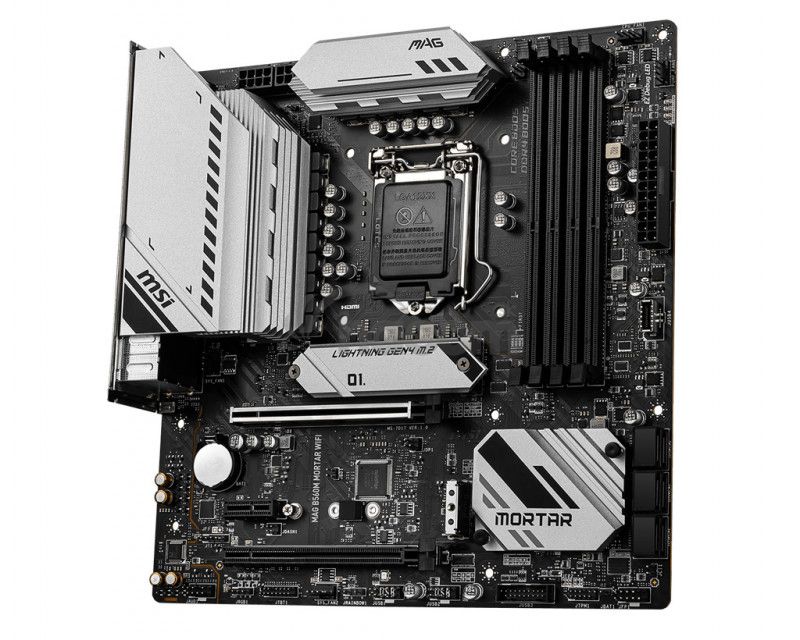

MSI MAG B560M MORTAR WIFI MAG B560M MORTAR WIFI

MSI MAG B560M MORTAR WIFI MAG B560M MORTAR WIFI

Chipset: Intel B560 Chipset

Rozmerový formát: M-ATX
Podpora pre procesory: 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Pätica procesora: LGA1200

Pozícia na pamäti: 4 x DDR4 memory slots, Dual-Channel mode
Podpora pre pamäte:
*Podpora 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU
*Podpora 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: non-ECC, XMP

Grafická karta: (na základe procesora)
*1x HDMI 2.0b with HDR port, maximálne rozlíšenie 4K 60Hz
*1x DisplayPort 1.4 port, maximálne rozlíšenie 4K 60Hz

Zvuková karta: Realtek ALC897 Codec
*7.1-Channel High Definition Audio
*Podpora S/PDIF output

Sieťová karta: 1x Realtek RTL8125B 2.5Gbps LAN controller

Rozširujúce sloty:
*2x PCIe x16 slots
*1x PCIe 3.0 x1 slot

SATA: 6x SATA 6Gb/s konektory

M.2: 2x M.2 slots (M-Key)

USB:
* Interné:
*1x USB 3.2 Gen 2 10Gbps Type-C port
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 konektory (supports additional 4 USB 2.0 ports)
* Externé:
*4x USB 2.0
*1x USB 3.2 Gen 2x2 20Gbps Type-C
*3x USB 3.2 Gen 1 5Gbps Type-A


Interné porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*1x 4-pin ATX 12V power connector
*6x SATA 6Gb/s konektory
*2x M.2 slots (M-Key)
*1x USB 3.2 Gen 2 10Gbps Type-C port
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 konektory (supports additional 4 USB 2.0 ports)
*1x 4-pin CPU fan connector
*1x 4-pin water-pump fan connector
*2x 4-pin system fan connectors
*1x Front panel audio konektor
*2x System panel connectors
*1x Chassis Intrusion connector
*1x Clear CMOS jumper
*1x TPM module connector
*1x Tuning Controller Connector
*1x TBT konektor (Supports RTD3)

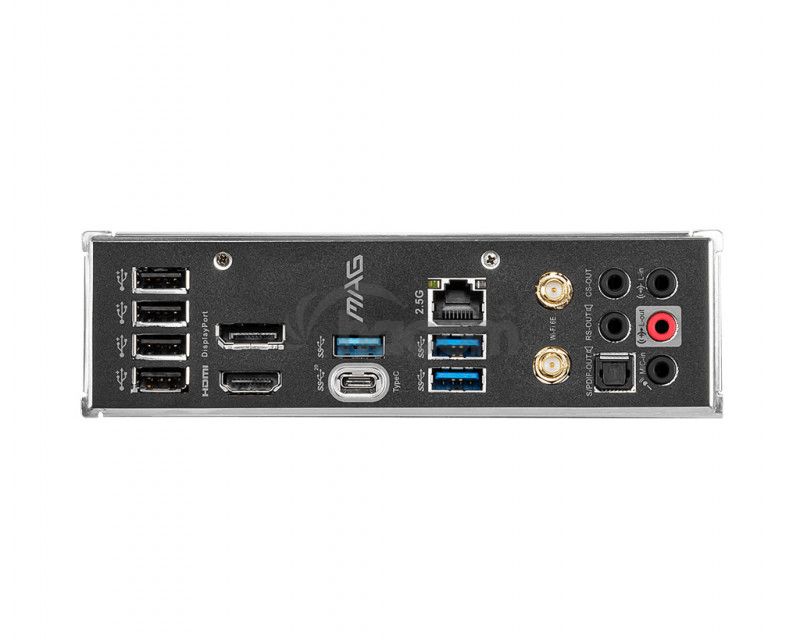

Externé porty:
*4x USB 2.0
*1x USB 3.2 Gen 2x2 20Gbps Type-C
*3x USB 3.2 Gen 1 5Gbps Type-A
*1x DisplayPort
*1x HDMI
*1x 2.5G LAN Port
*1x Optical S/PDIF OUT
*Wi-Fi / Bluetooth Antenna
*HD Audio Connectors

BIOS: AMI BIOS, 7D17v16

Stránka výrobcu: http://sk.msi.com/Motherboard/MAG-B560M-MORTAR-WIFI/Overview
