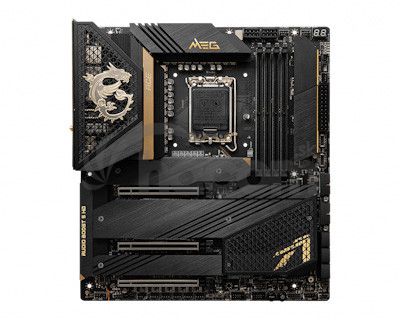

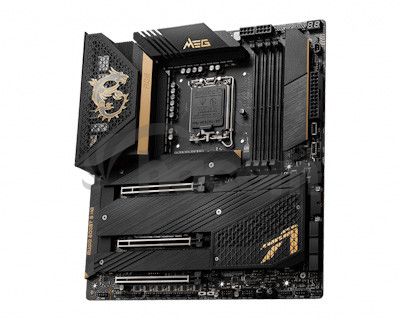

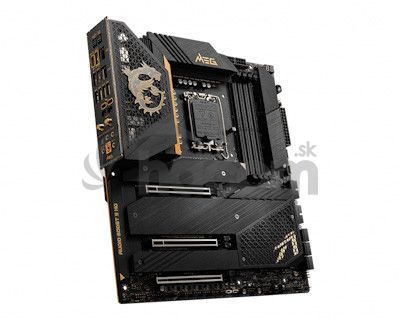

MSI MEG Z690 ACE/LGA 1700/E-ATX MEG Z690 ACE

MSI MEG Z690 ACE/LGA 1700/E-ATX MEG Z690 ACE

Chipset: Intel Z690 Chipset

Rozmerový formát: E-ATX (30.5 cm x 27.7 cm)
Podpora pre procesory: 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Pätica procesora: LGA 1700

Pozícia na pamäti: 4x DDR5 memory slots, Dual Controller Dual-Channel
Podpora pre pamäte: DDR5 4800 MHz
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: XMP

Grafická karta: (na základe procesora)
*1x Type-C Display port

Zvuková karta: Realtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA
*7.1-Channel High Definition Audio
*Podpora S/PDIF output

Sieťová karta:
*2x Intel I225V 2.5Gbps LAN controllers
*Intel Wi-Fi 6E - 802.11 a/ b/ g/ n/ ac/ ax
*Bluetooth 5.2

Rozširujúce sloty: 3x PCIe x16 slots

RAID radič:
*RAID 0, RAID 1, RAID 5 a RAID 10 pre SATA storage devices
*RAID 0, RAID 1 , RAID 5 a RAID 10 pre M.2 NVMe storage devices

SATA: 6x SATA 6Gb/s ports

M.2: 5x M.2 slots

USB:
* Interné:
*2x USB 3.2 Gen 2x2 20Gbps Type-C ports
*2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
* Externé:
*7x USB 3.2 Gen 2 10Gbps (Type-A)
*1x USB 3.2 Gen 2 10 Gbps (Type-C Display port)


Interné porty:
*1x 24-pin ATX main power connector
*2x 8-pin ATX 12V power connectors
*6x SATA 6Gb/s konektory
*5x M.2 slots (M-Key)
*2x USB 3.2 Gen 2x2 20Gbps Type-C ports
*2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
*1x 4-pin CPU fan connector
*1x 4-pin water-pump fan connector
*6x 4-pin system fan connectors
*1x Front panel audio connector
*2x System panel connectors
*1x Chassis Intrusion connector
*1x 3-pin Water Flow connector
*2x 2-pin Thermal sensor connectors
*1x TPM module connector
*1x Tuning Controller connector

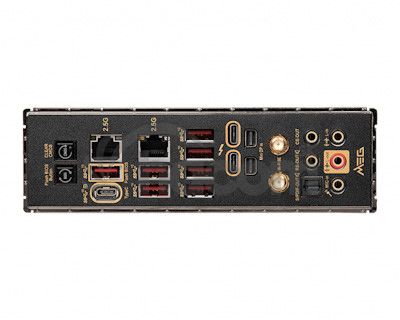

Externé porty:
*2x 2.5G LAN
*2xMini DisplayPort Input (for Thunderbolt passthrough)
*7x USB 3.2 Gen 2 10Gbps (Type-A)
*2x Thunderbolt 4 40Gbps (Type-C)
*1x USB 3.2 Gen 2 10 Gbps (Type-C Display port)
*Wi-Fi / Bluetooth
*Clear CMOS Button
*HD Audio Connectors
*Flash BIOS Button
*1x Optical S/PDIF-Out

BIOS: AMI BIOS 7D27v11

Stránka výrobcu: http://www.msi.com/Motherboard/MEG-Z690-ACE/Overview
