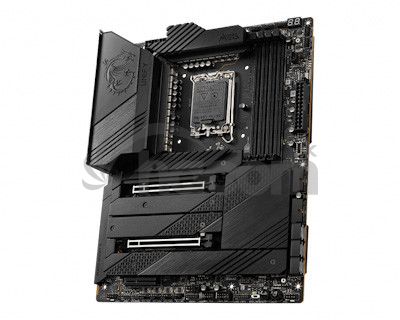

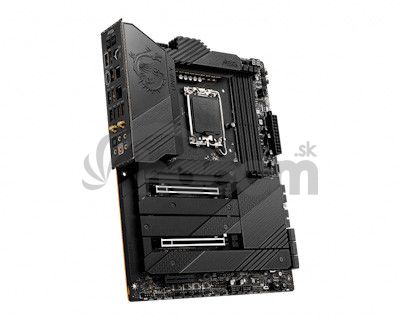

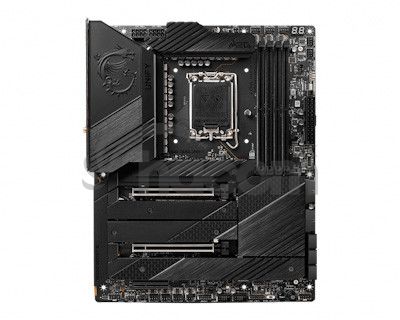

MSI MEG Z690 UNIFY/LGA 1700/ATX MEG Z690 UNIFY

MSI MEG Z690 UNIFY/LGA 1700/ATX MEG Z690 UNIFY

Chipset: Intel Z690 Chipset

Rozmerový formát: ATX (30.5 cm x 24.4 cm)
Podpora pre procesory: 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Pätica procesora: LGA1700

Pozícia na pamäti: 4x DDR5 memory slots, Dual Controller Dual-Channel
Podpora pre pamäte: 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333 (OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: XMP 3.0

Zvuková karta: Realtek ALC4080 Codec
*7.1-Channel High Definition Audio
*Podpora S/PDIF output

Sieťová karta:
*2x Intel I225-V 2.5Gbps LAN controllers
*Intel Wi-Fi 6E - 802.11 a/ b/ g/ n/ ac/ ax
*Bluetooth 5.2

Rozširujúce sloty:
*2x PCIe x16 slots
*1x PCIe x4 slot

RAID radič:
*RAID 0, RAID 1, RAID 5 a RAID 10 pre SATA storage devices
*RAID 0, RAID 1, RAID 5 a RAID 10 pre M.2 NVMe storage devices

SATA: 6x SATA 6Gb/s ports

M.2: 5x M.2 slots

USB:
* Interné:
*1x USB 3.2 Gen 2x2 20 Gbps Type-C port
*2x USB 3.2 Gen 1 5Gbps connector (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
* Externé:
*2x USB 2.0
*7x USB 3.2 Gen 2 10Gbps (Type-A)
*1x USB 3.2 Gen 2x2 20Gbps (Type-C)

Interné porty:
*1x 24-pin ATX main power connector
*2x 8-pin ATX 12V power connectors
*6x SATA 6Gb/s konektory
*5x M.2 slots (M-Key)
*1x USB 3.2 Gen 2x2 20 Gbps Type-C port
*2x USB 3.2 Gen 1 5Gbps connector (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
*1x 4-pin CPU fan connector
*1x 4-pin water-pump fan connector
*6x 4-pin system fan connectors
*1x Front panel audio connector
*2x System panel connectors
*1x Chassis Intrusion connector
*2x 2-pin Thermal Sensors connector
*1x Water flow connector
*1x V-check point
*1x TPM module connector
*1x Tuning controller connector
*1x Debug port connector
*1x TBT konektor (Supports RTD3)

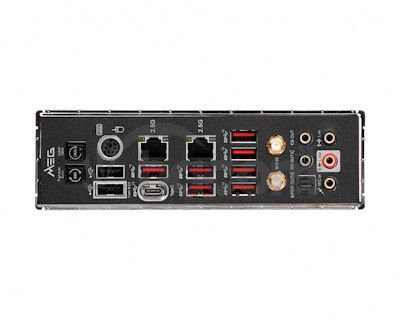

Externé porty:
*Clear CMOS Button
*PS/2 Keyboard / Mouse Port
*2x 2.5G LAN
*2x USB 2.0
*7x USB 3.2 Gen 2 10Gbps (Type-A)
*1x USB 3.2 Gen 2x2 20Gbps (Type-C)
*1x Optical S/PDIF-Out
*Wi-Fi / Bluetooth
*HD Audio Connectors
*Flash BIOS Button

BIOS: AMI BIOS 7D28v11

Stránka výrobcu: http://www.msi.com/Motherboard/MEG-Z690-UNIFY/Overview
