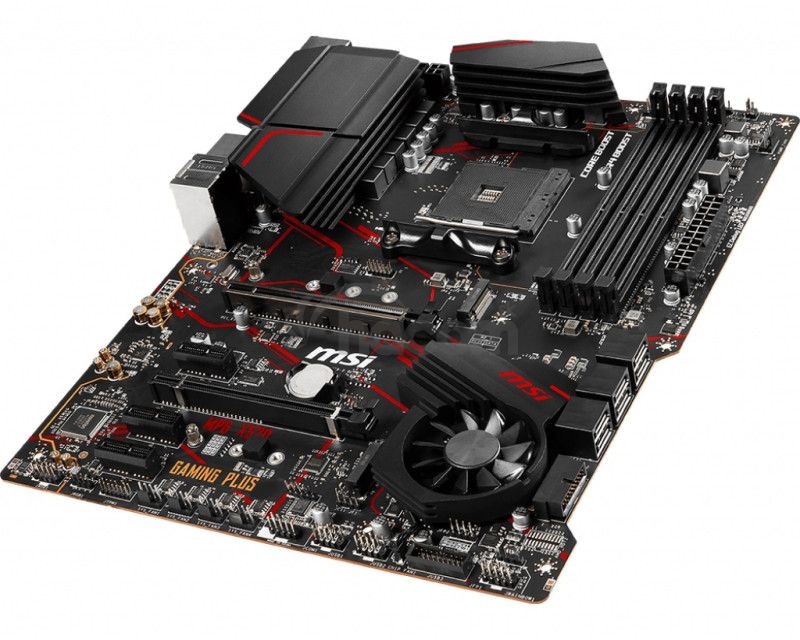

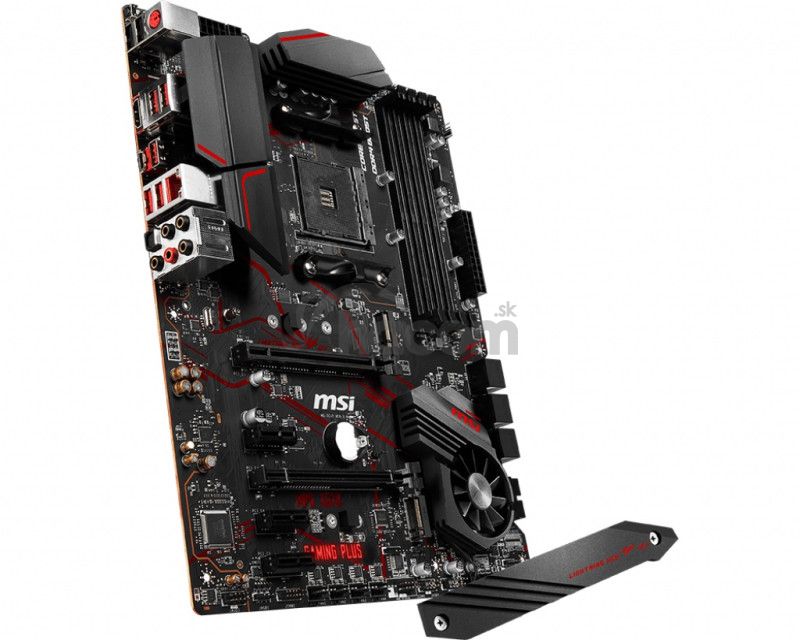

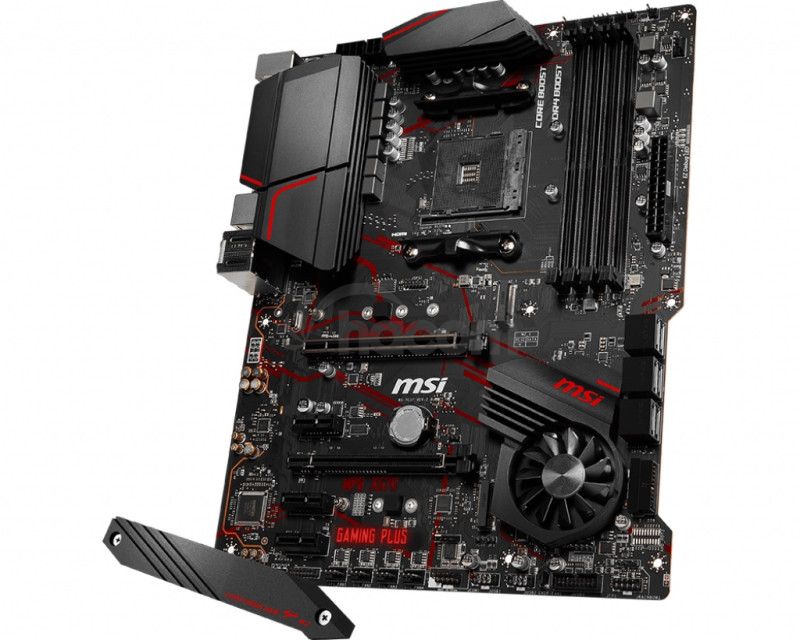

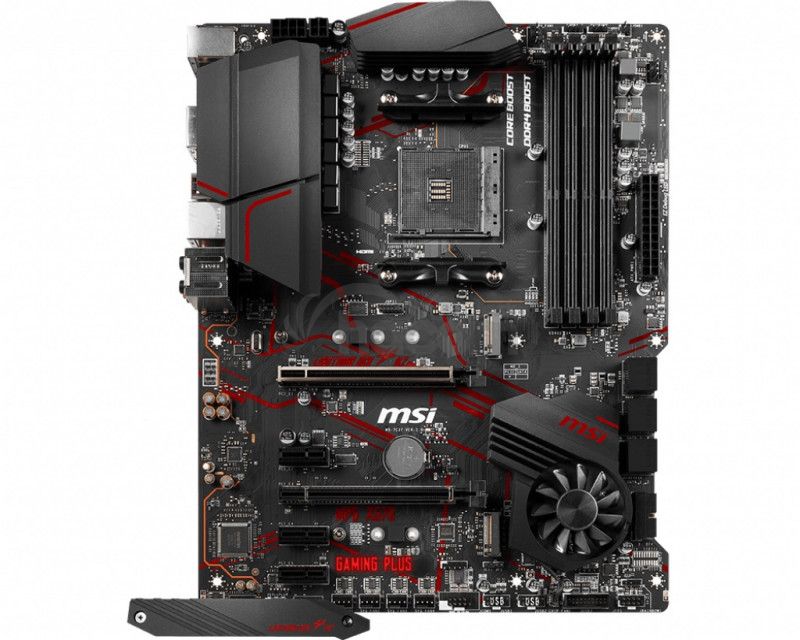

MSI MPG X570 GAMING PLUS MPG X570 GAMING PLUS

MSI MPG X570 GAMING PLUS MPG X570 GAMING PLUS

Chipset: AMD® X570 chipset

Rozmerový formát: ATX Form Factor (30.4 cm x 24.3 cm)
Podpora pre procesory: 2nd and 3rd Gen AMD Ryzen ™ / Ryzen ™ with Radeon ™ Vega Graphics and 2nd Gen AMD Ryzen ™ with Radeon ™ Graphics Desktop Processors
Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 SDRAM memory slots, Dual channel memory architecture
Podpora pre pamäte:
* 3rd Gen AMD Ryzen ™ Processors support DDR4 SDRAM 1866/2133/2400/2667/2800/2933/3000/3066/3200 Mhz by JEDEC, and 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866 / 4000/4133/4266/4400 Mhz by A-XMP OC MODE
* Nd Gen AMD Ryzen ™ Processors, 1st and 2nd Gen AMD Ryzen ™ with Radeon ™ Vega Graphics Processors support DDR4 SDRAM 1866/2133/2400/2667/2800/2933/3000/3066/3200 Mhz by JEDEC, and 2667/2800/2933 / 3000/3066/3200/3466 Mhz by A-XMP OC MODE
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: non-ECC, ECC,

Grafická karta: Maximálna zdieľaná pamäť 2048 MB
* 1x HDMI 1.4 port, maximálne rozlíšenie 4096x2160 @ 24Hz
Zvuková karta: Realtek® ALC1220 Codec, 7.1-Channel High Definition Audio, (Podpora Optical S / PDIF output)
Sieťová karta: 1x Realtek® 8111H Gigabit LAN Controller

Rozširujúce sloty:
* 1x PCIe 4.0 / 3.0 x16 slot (PCI_E1)
* 1x PCIe 4.0 / 3.0 x16 slot (PCI_E3, supports x4 mode)
* 3x PCIe 3.0 x1 slots

RAID radič: RAID 0, RAID 1 and RAID 10

SATA:
* AMD® X570 Chipset
* 4x SATA 6Gb / s ports (SATA3-SATA6)
* ASMedia ASM1061
* 2x SATA 6Gb / s ports (SATA1, SATA2)
M.2: 2x M.2 slots (Key M)

USB:
* AMD® X570 Chipset
* 6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports na zadnom paneli, 4 ports cez interný USB 3.2 Gen 1 connectors)
* 6x USB 2.0 (High-speed USB) ports (2 Type-A ports na zadnom paneli, 4 ports cez interný USB 2.0 connectors)
* AMD® Processor
* 2x USB 3.2 Gen 2 (3rd Gen AMD Ryzen ™) or USB 3.2 Gen1 + (2nd Gen AMD Ryzen ™ / Ryzen ™ with Radeon ™ Vega Graphics and 2nd Gen AMD Ryzen ™ with Radeon ™ Graphics) ports (1x Type-A & 1x Type-C) na zadnom paneli
* 2x USB 3.2 Gen1 + (SuperSpeed USB) Type-A ports na zadnom paneli

Interné porty:
* 1x 24-pin ATX main power connector
* 1x 8-pin ATX 12V power connector
* 1x 4-pin ATX 12V power connector
* 6x SATA 6Gb / s connectors
* 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
* 2x USB 3.2 Gen1 + connectors (supports additional 4 USB 3.2 Gen1 + ports)
* 1x 4-pin CPU fan connector
* 1x 4-pin water-pump connector
* 4x 4-pin system fan connectors
* 1x Front panel audio connector
* 2x System panel connectors
* 1x TPM module connector
* 1x Serial port connector
* 1x Clear CMOS jumper
* 1x Chassis Intrusion connector
* 2x 4-pin RGB LED connectors
* 2x 3-pin RAINBOW LED connectors
* 4x EZ Debug LEDs

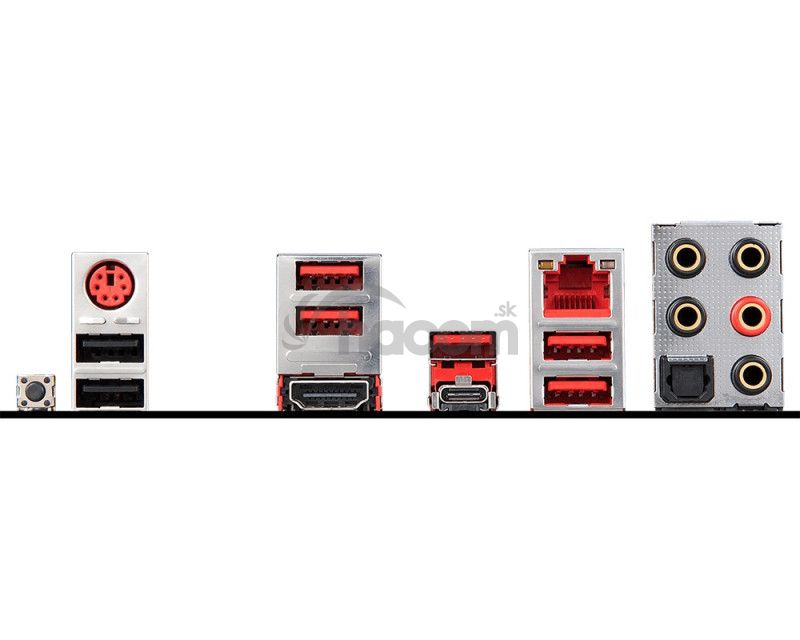

Externé porty:
* 1x Keyboard / Mouse
* 4x USB 3.2 Gen1 + Type-A
* 1x LAN
* 1x Audio Connectors
* Flash BIOS Button
* 2x USB 2.0
* 1x HDMI
* 1x USB 3.2 Gen2 Type-C
* 1x USB 3.2 Gen2 Type-A
* 1x Optical S / PDIF out

BIOS AMI BIOS 7C37vA37

Stránka výrobca: https://www.msi.com/Motherboard/MPG-X570-GAMING-PLUS/Overview
