MSI MPG Z590 GAMING CARBON WIFI MPG Z590 GAMING CARBON WIFI

MSI MPG Z590 GAMING CARBON WIFI MPG Z590 GAMING CARBON WIFI

Chipset: Intel® Z590 chipset

Rozmerový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pre procesory: 10th Gen Intel® Core ™ Processors, 11th Gen Intel® Core ™ Processors, Pentium® Gold and Celeron® Processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte:
* Supports 1R 2133/2666/2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
* Supports 1R 2133/2666/2933/3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
* 1DPC 1R Max speed up to 5333 MHz
* 1DPC 2R Max speed up to 4700+ MHz
* 2DPC 1R Max speed up to 4400+ MHz
* 2DPC 2R Max speed up to 4000+ MHz
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual channel memory architecture
* Non-ECC, un-buffered memory
* Intel® Extreme Memory Profile (XMP)

Grafická karta: Integrated Graphics Processor (na základe procesora)

Multi-GPU: 3-Way AMD® CrossFire ™ Technology

Zvuková karta:
* Realtek® ALC4080 Codec

Sieťová karta:
* 1x Intel® I225V 2.5Gbps LAN controller
* Intel® Wi-Fi 6E AX210
* Bluetooth 5.2

Rozširujúce sloty:
* 3x PCIe x16 slots
* 2x PCIe 3.0 x1 slots

RAID radič: 0, 1, 10

SATA:
* 6x SATA 6Gb / s connectors

M.2:
* 1x M2_1 slot PCIe 4.0 x4, Supports 2242/2260/2280/22110 storage devices
* 1x M2_2 slot PCIe 3.0 x4, Supports SATA 6Gb / s, Supports 2242/2260/2280 storage devices
* 1x M2_3 slot PCIe 3.0 x4, Supports SATA 6Gb / s, Supports 2242/2260/2280 storage devices

USB:
* Zadné USB porty (celkom 10)
* 1x USB3.2 Gen2x2 20Gbps Type-C port
* 3x USB 3.2 Gen 2 10Gbps ports
* 2x USB 3.2 Gen 1 5Gbps ports
* 4x USB 2.0 ports
* Predné USB porty (celkom 7)
* 1x USB 3.2 Gen 2 10Gbps Type-C ports
* 2x USB 3.2 Gen 1 5Gbps ports
* 4x USB 2.0 ports

Interné porty:
* 1x 24-pin ATX main power connector
* 2x 8-pin ATX 12V power connectors
* 1x 6-pin PCIE power connector
* 6x SATA 6Gb / s connectors
* 3x M.2 slots (M-Key)
* 1x USB 3.2 Gen 2 10Gbps Type-C port
* 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
* 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
* 1x 4-pin CPU fan connector
* 1x 4-pin water-pump fan connector
* 6x 4-pin system fan connectors
* 1x Front panel audio connector
* 2x System panel connectors
* 1x Chassis Intrusion connector
* 1x Clear CMOS jumper
* 1x TPM module connector
* 1x TBT connector (supports RTD3)
* 1x Tuning Controller connector

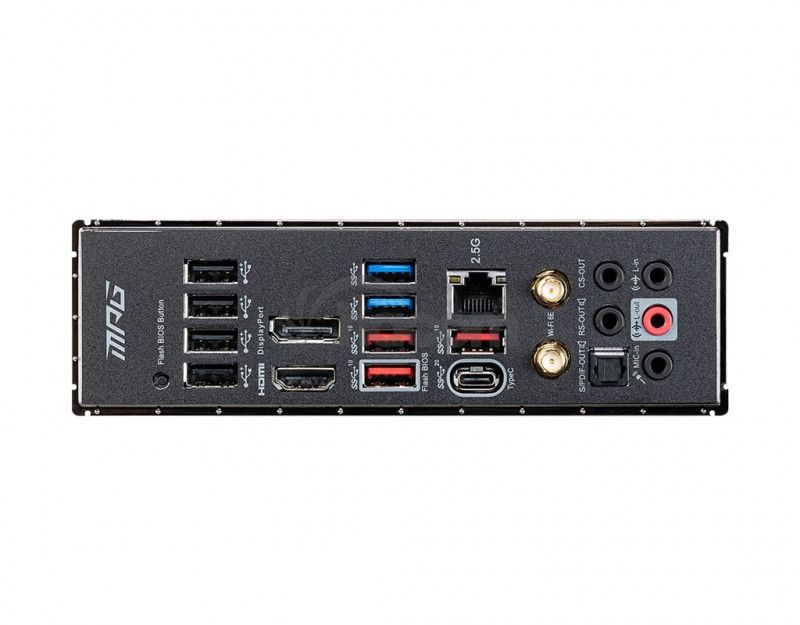

Externé porty:
* 4x USB 2.0
* DisplayPort
* 2x USB 3.2 Gen 1 5Gbps Type-A
* 1x 2.5G LAN
* 5x Audio Connectors
* Flash BIOS Button
* HDMI
* 3x USB 3.2 Gen 2 10Gbps Type-A
* 1x USB 3.2 Gen 2x2 20Gbps Type-C
* Wi-Fi / Bluetooth
* Optical S / PDIF Out

Stránka výrobca: https://www.msi.com/Motherboard/MPG-Z590-GAMING-CARBON-WIFI
