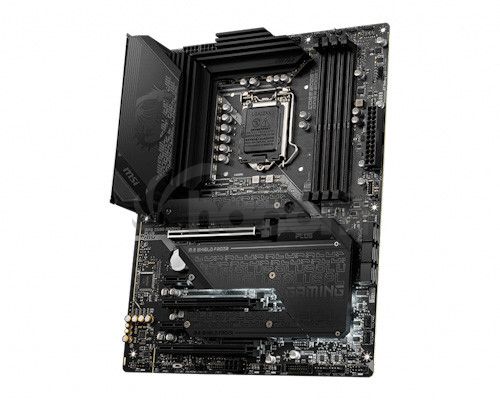

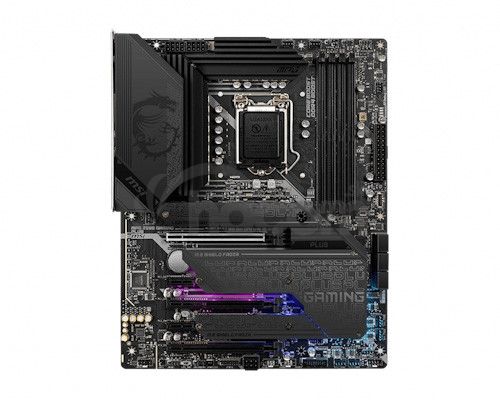

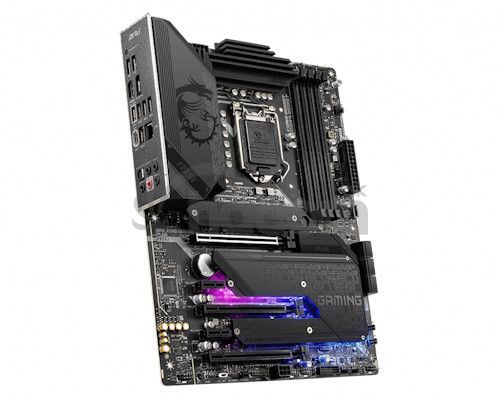

MSI MPG Z590 GAMING PLUS MPG Z590 GAMING PLUS

MSI MPG Z590 GAMING PLUS MPG Z590 GAMING PLUS

Chipset: Intel Z590 Chipset

Rozmerový formát: ATX Form Factor (30.5 cm x 24.4 cm)
Podpora pre procesory: 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 4x DDR4 memory slots, Dual-Channel mode
Podpora pre pamäte:
*Podpora 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU
*Podpora 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: XMP, non-ECC

Grafická karta: (na základe procesora)
*1x HDMI 2.0b with HDR port, maximálne rozlíšenie 4K 60Hz
*1x DisplayPort 1.4 port, maximálne rozlíšenie 4K 60Hz

Zvuková karta: Realtek ALC4080
*7.1-Channel High Definition Audio
*Podpora S/PDIF output

Sieťová karta: 1x Intel I225-V 2.5Gbps LAN controller

Rozširujúce sloty:
*3x PCIe x16 slots
*2x PCIe 3.0 x1 slots

RAID radič:
*RAID 0, RAID 1, RAID 5 a RAID 10 pre SATA storage devices
*RAID 0, RAID 1 a RAID 5 pre M.2 PCIe storage devices

SATA: 6x SATA 6Gb/s konektory

M.2: 3x M.2 slots

USB:
* Interné:
*1x USB 3.2 Gen 2 10Gbps Type-C port
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 konektory (supports additional 4 USB 2.0 ports)
* Externé:
*2x USB 2.0
*2x USB 3.2 Gen 1 5Gbps Type-A
*3x USB 3.2 Gen 2 10Gbps Type-A
*1x USB 3.2 Gen 2x2 20Gbps Type-C

Interné porty:
*1x 24-pin ATX main power connector
*2x 8-pin ATX 12V power connectors
*1x 6-pin ATX PCIE power connector
*6x SATA 6Gb/s konektory
*3x M.2 slots (M-Key)
*1x USB 3.2 Gen 2 10Gbps Type-C port
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 konektory (supports additional 4 USB 2.0 ports)
*1x 4-pin CPU fan connector
*1x 4-pin water-pump fan connector
*6x 4-pin system fan connectors
*1x Front panel audio konektor
*2x System panel connectors
*1x Chassis Intrusion connector
*1x TPM module connector
*1x Clear CMOS jumper
*1x TBT konektor (supports RTD3)

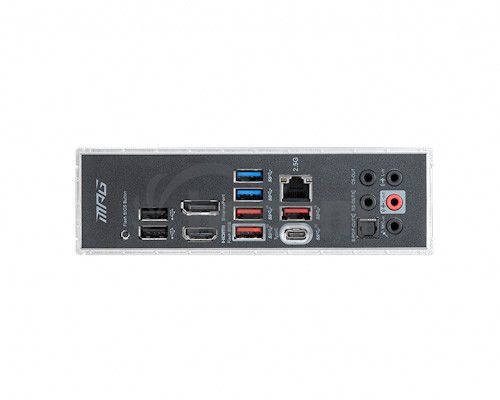

Externé porty:
*1x DisplayPort
*1x HDMI
*2x USB 2.0
*2x USB 3.2 Gen 1 5Gbps Type-A
*3x USB 3.2 Gen 2 10Gbps Type-A
*1x USB 3.2 Gen 2x2 20Gbps Type-C
*1x 2.5G LAN
*1x Optical S/PDIF Out
*Audio Connectors
*Flash BIOS Button

BIOS: AMI BIOS, 7D07vA4

Stránka výrobcu: http://sk.msi.com/Motherboard/MPG-Z590-GAMING-PLUS/Overview
