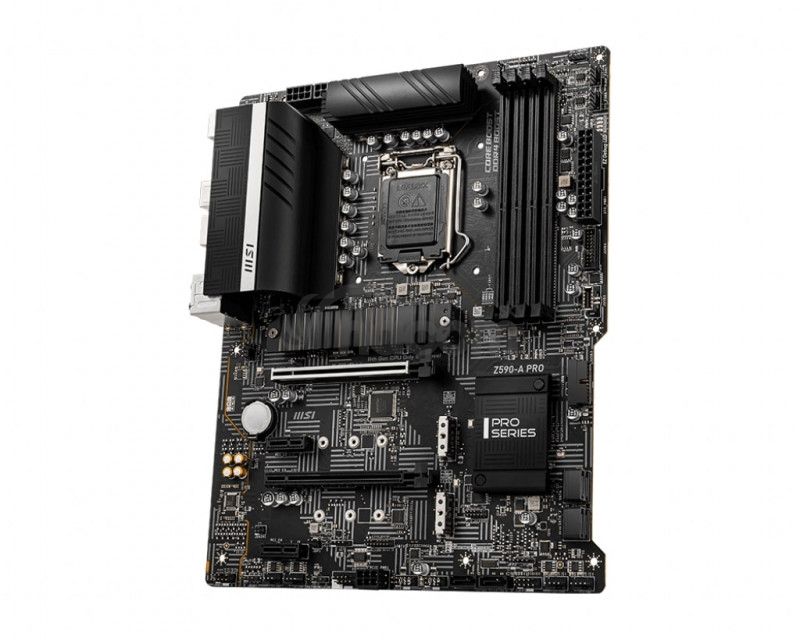

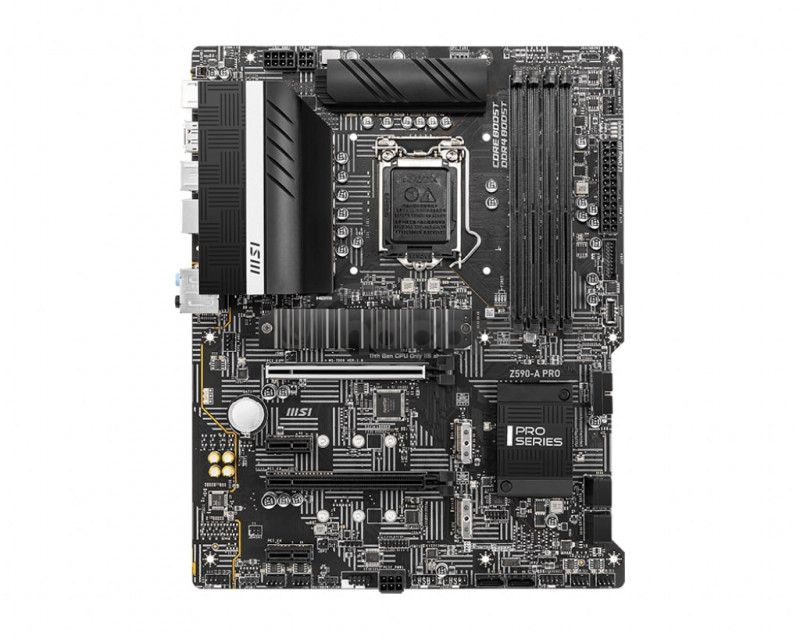

MSI Z590-A PRE Z590-A PRO

MSI Z590-A PRE Z590-A PRO

Chipset: Intel® Z590 chipset

Rozmerový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pre procesory: 10th Gen Intel® Core ™ Processors, 11th Gen Intel® Core ™ Processors, Pentium® Gold and Celeron® Processors
Pätica procesora: LGA 1200

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte:
* Supports 1R 2133/2666/2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
* Supports 1R 2133/2666/2933/3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
* 1DPC 1R Max speed up to 5333 MHz
* 1DPC 2R Max speed up to 4700+ MHz
* 2DPC 1R Max speed up to 4400+ MHz
* 2DPC 2R Max speed up to 4000+ MHz
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual channel memory architecture
* Non-ECC, un-buffered memory
* Intel® Extreme Memory Profile (XMP)

Grafická karta: Integrated Graphics Processor (na základe procesora)

Multi-GPU: 2-Way AMD® CrossFire ™ Technology

Zvuková karta:
* Realtek®ALC897 Codec

Sieťová karta:
* 1x Intel® I225-V 2.5Gbps LAN controller

Rozširujúce sloty:
* 2x PCIe x16 slots
* 2x PCIe 3.0 x1 slots

RAID radič: 0, 1, 5, 10

SATA:
* 6x SATA 6Gb / s connectors

M.2:
* 1x M2_1 slot PCIe 4.0x4, Supports 2242/2260/2280/22110 storage devices
* 1x M2_2 slot PCIe 3.0x4, Support up to SATA 6Gb / s, Support 2242/2260/2280 storage devices, Intel® optání ™ Memory Ready
* 1x M2_3 slot PCIe 3.0x4, Support up to SATA 6Gb / s, Support 2242/2260/2280 storage devices, Intel® optání ™ Memory Ready

USB:
* Zadné USB porty (celkom 8)
* 1x USB 3.2 Gen 2x2 20Gbps Type-C port
* 1x USB 3.2 Gen 2 10Gbps port
* 2x USB 3.2 Gen 1 5Gbps ports
* 4x USB 2.0 Type-A ports
* Predné USB porty (celkom 9)
* 1x USB 3.2 Gen 2 10Gbps Type-C port
* 4x USB 3.2 Gen 1 5Gbps ports
* 4x USB 2.0 ports

Interné porty:
* 1x 24-pin ATX main power connector
* 1x 8-pin ATX 12V power connector
* 1x 4-pin ATX 12V power connector
* 1x 6-pin ATX PCIe power connector
* 6x SATA 6Gb / s connectors
* 3x M.2 slots (M-Key)
* 1x USB 3.2 Gen 2 10Gbps Type-C port
* 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
* 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
* 1x 4-pin CPU fan connector
* 1x 4-pin water-pump fan connector
* 6x 4-pin system fan connectors
* 1x Front panel audio connector
* 2x System panel connectors
* 1x Chassis Intrusion connector
* 1x Clear CMOS jumper
* 1x TPM module connector
* 1x Serial port connector
* 1x Tuning controller connector
* 1x TBT connector (Supports RTD3)

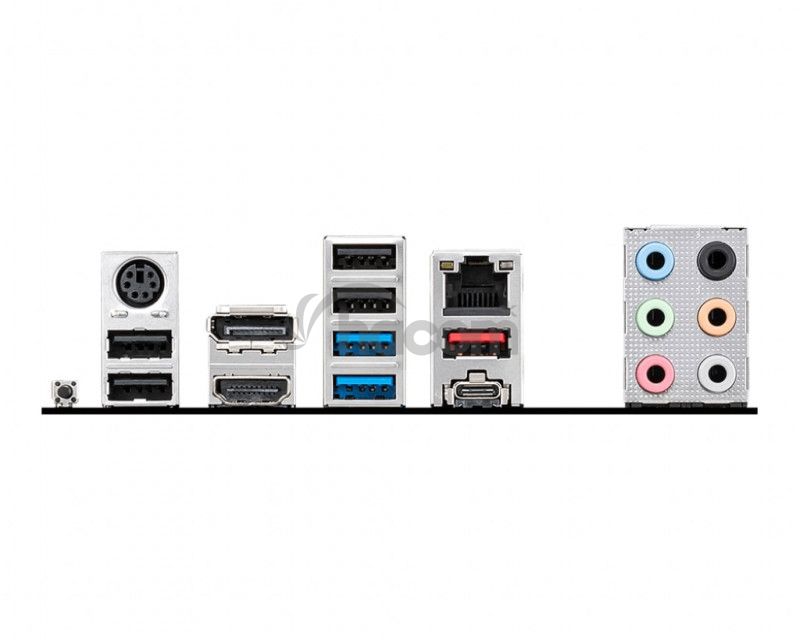

Externé porty:
* Keyboard / Mouse
* DisplayPort
* 4x USB 2.0
* 1x LAN port
* 6x Audio connector
* Flash BIOS Button
* HDMI
* 2x USB 3.2 Gen 1 5Gbps Type-A
* 1x USB 3.2 Gen 2x2 20Gbps Type-C
* 1x USB 3.2 Gen 2 10Gbps Type-A

Stránka výrobca: https://www.msi.com/Motherboard/Z590-A-PRO
