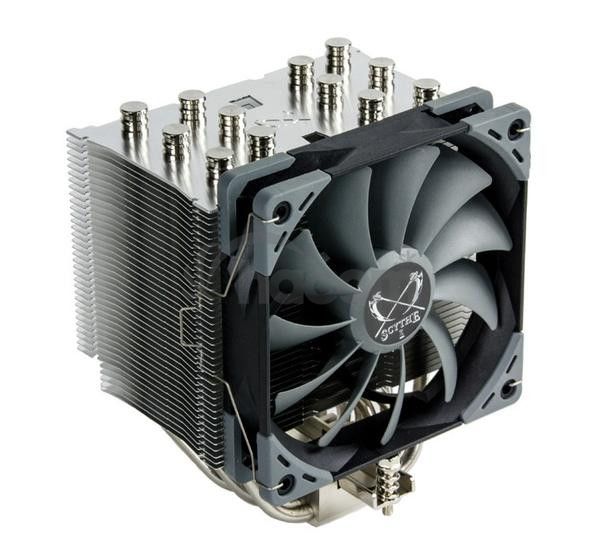

SCYTHE SCMG-5100 Mugen 5 CPU Cooler Rev.B SCMG-5100

SCYTHE SCMG-5100 Mugen 5 CPU Cooler Rev.B SCMG-5100

Mugen 5 Rev.B

Revízia B oceneného procesora Mugen 5 CPU Cooler bola aktualizovaná s prepracovaným montážnym systémom, ktorý teraz ponúka plnú kompatibilitu s novou AM4 platformou AMD. Pružinové skrutky zabraňujú nerovnomernému rozloženiu tlaku a umožňujú rýchlu a jednoduchú montáž. Neobvyklý tvar chladiča poskytuje bezkonkurenčnú pamäťovú kompatibilitu vďaka jeho asymetrickému dizajnu. Ventilátor z novej série Kaze Flex sa používa pre aktívne chladenie. Uzavreté tesnenie FDB a pogumovaný oddeľovač zaručujú ventilátora vyššiu hladkosť počas prevádzky a priemernú životnosť 120 000 hodín. Popri leštené a vysoko kvalitné medené základnej dosky sú teplárne tiež úplne poniklovanej. Výsledkom je vynikajúci a ocenený vežový chladič, ktorý neohrozuje ani optiku, ani výkon.

Mugen 5 Rev.B

The revision B of the award-winning Mugen 5 CPU Cooler has been updated with a reworked mounting system, which now offers full compatibility with AMD 's new AM4 platform. Spring-loaded screws prevent Uneven pressure distribution and allow for a quick and easy assembly. The unusual shape of the heatsink provides unrivaled memory compatibility thanks to its asymmetrical dizajn. A fan from the new Kaze Flex series is used for active cooling. Sealed Precision FDB bearing and rubberized decoupler grant the fan with an increased Smoothness during operation and an average lifespan of 120,000 hours. In addition to the polished and high-quality copper base-plate, the heatpipes are now completely nickel-plated, too. The result is an excellent and award-winning tower cooler that does not compromise either in terms of optics nor performance.

Model Name: Mugen 5 Rev.B CPU Cooler

Model Number: SCMG-5100

EAN: 4571225056357

Compatibility:
Intel®: Socket LGA775, Socket LGA1150, Socket LGA1151, Socket LGA1155, Socket LGA1156, Socket LGA1366, Socket LGA2011 / 2011-v3 (Square ILM), Socket LGA2066
AMD®: Socket AM2, Socket AM2 +, Socket AM3, Socket AM3 +, Socket AM4, Socket FM1, Socket FM2, Socket FM2 +

Overall Dimensions WxHxD: 130 x 154,5 x 110 mm / 5.12 x 6.08 x 4.33 inch (including fan - more details)

Weight: 890 g / 31.4 oz

Accessory: Mounting parts for Intel and AMD sockets, fan, fan clips, thermal grease, installation manual.

Baseplate Material / Heatpipes: Nickel-plated copper (additional information)

Please note that an original backplate with screw mounting is needed for installation on mainboards with AMD sockets. Please check before buying if the backplate is fixed by screws (example)! If the backplate uses plastic-pins, mounting of this cooler is not possible.

Fan Specifications

Model Name: Kaze Flex 120 PWM

Dimensions: 120 x 120 x 27 mm / 4.72 x 4.72 x 1.06 inch

Noise Level: 4 ~ 24,9 dBA

Air Flow: 16,6 ~ 51.17 CFM / 28,2 ~ 86,93 m3 / h

Fan Speed: 300 (± 200 rpm) ~ 1.200 rpm (± 10%) (PWM-controlled)

Static Pressure: 0,75 ~ 10,3 Pa / 0,076 ~ 1,05 mmH2O

Bearing Type: Sealed Precision FDB

Voltage: 12V

MTTF: 120.000 Hours (25 ° C)
