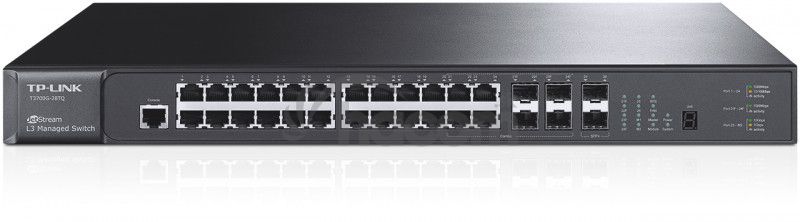

TP-Link L3 Managed Switch, 24x1G, 4x combo, 2 + 2 10G SFP +

OVERVIEW
* Abundant Layer 3 routing protocols including RIP / OSPF / ECMP / VRRP that support a scalable network
* True Physical Stacking technology supports up to 8 units and 320Gbps backplane bandwidth for high Scalability and efficient redundancy
* 10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth dáta delivery
* Removable power unit and redundant power supply functionality minimizes Downtime
* PIM-SM / PIM-DM / IGMP Snooping for resilient video deployments


SPECIFICATIONS
HARDWARE FEATURES
Standards and Protocols
* IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

interface
* 24 10/100 / 1000Mbps RJ45 Ports (Auto Negotiation / Auto MDI / MDIX)
* 4 combo gigabit SFP Slots
* Up to 4 10G SFP + Slots (2 fixed and 2 optional 10G SFP + Slots)
* 1 Console Port

Network Media
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* 100BASE-TX / 1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
* 100BASE-FX: MMF, SMF
* 1000BASE-X: MMF, SMF
* 10GBASE-LR
* 10GBASE-SR

Dimensions (WXDXH)
* 440 * 330 * 44 mm

Fan Quantity
* 4

power Consumption
* 63W (220V / 50Hz) max

Power Supply
* 100 ~ 240VAC, 50 / 60Hz

PHYSICAL STACKING
Installable SFP + Transceivers and Direct Attach Copper (DAC) Cables
* TXM431-SR
* TXM431-LR
* TXC432-CU1M
* TXC432-CU3M

Max Number of Stacking Ports Installable
* 2 SFP +

No. of Units Per Stack
* 8

Stacking Speed (Per Port)
* 20 Gbps (Full-Duplex)

PERFORMANCE
switching Capacity
* Up to 128Gbps for a standalone switch

Bandwidth / Backplane
* Up to 320Gbps when 8 units in the stack

MAC Address Table
* 32K

Packet Buffer Memory
* 16 Mbits

Packet Forwarding Rate
* Up to 95.2Mpps for a standalone switch

jumbo Frame
* 10240 Bytes

Number of IP Interfaces
* 128

Number of Routes
* 12K

Number of Static Routes
* 256

SOFTWARE FEATURES
L3 Features
* Wire-speed IP forwarding
* Static Routing
* RIP v1, v2
* OSPF v2
* ECMP
* PIM-SM / PIM-DM / IGMP
* DHCP Server / Relay
* ARP Proxy
* VRRP

Quality of Service
* Support 802.1p CoS / DSCP priority
* Support 8 priority queues
* Queue Scheduling: SP, WRR, SP + WRR
* Port / Flow- based Rate Limiting
* Voice VLAN

L2 Features
* IGMP Snooping V1 / V2 / V3
* 802.3ad LACP (Up to 32 aggregation groups, containing 8 ports per group)
* Spanning Tree STP / RSTP / MSTP
* BPDU Filtering / Guard
* TC / Root Protect
* Loop back detection
* 802.3x Flow Control

VLAN
* Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
* IEEE 802.1Q VLAN / MAC VLAN / Protocol VLAN / QinQ / Private VLAN / GVRP

Access Control List
* L2 ~ L4 package filtering based on source and destination MAC address, IP address, TCP / UDP porty, 802.1p, DSCP, protocol and VLAN ID
* Time Range Based

Security
* IP-MAC-Port-VID Binding
* IEEE 802.1X Port / MAC Based authentication, Radius, Guest VLAN
* DoS Defence
* Dynamic ARP inspection (DAI)
* SSH v1 / v2
* SSL v2 / v3 / TLSv1
* Port Security
* Broadcast / Multicast / Unknown-unicast Storm Control

Management
* Web-based GUI and CLI management
* SNMP v1 / v2c / v3, compatible with public MIBs and TP-LINK private MIBs
* RMON (1, 2, 3, 9 groups)
* DHCP / BOOTP Client, DHCP Snooping, DHCP Option82
* CPU Monitoring
* Port Mirroring
* Time Setting: SNTP
* Integrated NDP / NTDP feature
* Firmware Upgrade: TFTP & Web
* System Diagnose: VCT
* Syslog & Public MIBS
* Dual Image

OTHERS
Certification
* CE, FCC, RoHS

Package Contents
* Switch; Power Cord; Quick Installation Guide; Zdrojové CD; Rackmount Kit; Rubber Feet

System Requirements
* Microsoft® Windows® 98SE, NT, 2000, XP, Vista ™ alebo Windows 7/8, Mac® OS, NetWare®, UNIX® or Linux.

Environment
* Operating Temperature: 0 ° C ~ 40 ° C
* Storage Temperature: -40 ° C ~ 70 ° C
* Operating Humidity: 10% ~ 90% non-condensing
* Storage Humidity: 5% ~ 90% non-condensing
