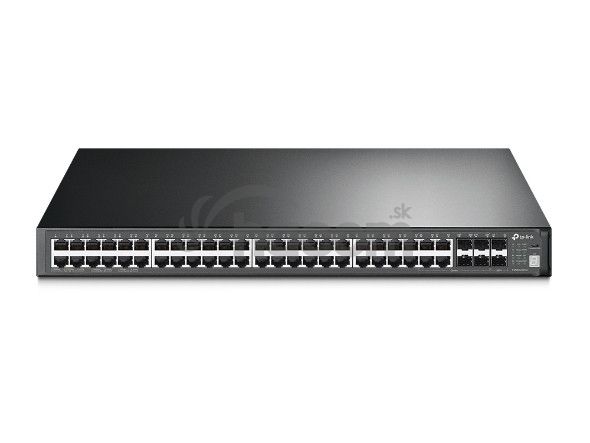

TP-Link T3700G-52TQ L3 Managed Switch 48xG, 4x combo, 2 + 2 10G SFP + T3700G-52TQ
T3700G-52TQJetStream 52-Port Gigabit Stackable L3 Managed Switch
Odkaz na web výrobcu:
Zhrnutie vlastností
* Abundant Layer 3 routing protocols including RIP / OSPF / ECMP / VRRP that support a scalable network
* True Physical Stacking technology supports up to 8 units for high Scalability and efficient redundancy
* 10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth dáta delivery
* Dual removable power units Minimize Downtime
* PIM-SM / PIM-DM / IGMP Snooping for resilient video deployments
* RJ45 / Micro-USB Console ports and out-of-band Management port provide a range of management options
* A USB 2.0 port makes it easy to import files and restore configurations
špecifikácie
HARDWARE FEATURES
* Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1 p
* Interface
48 10/100 / 1000Mbps RJ45 Ports
(Auto Negotiation / Auto MDI / MDIX)
4 Combo Gigabit SFP Slots
Up to 4 10G SFP + Slots (2 fixed and 2 optional)
1 Micro-USB, 1 RJ45 Console Port
1 Management Port
1 USB Slot
* Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX / 1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR
* Fan Quantity
2 Removable
* Power Supply
100 ~ 240VAC, 50 / 60Hz
Dual Hot-swappable power supply module: PSM150 (Maximum Output Power: 150W)
* Dimensions (W x D x H)
17.32 * 16.55 * 1.73 in. (440 * 420 * 44 mm)
PHYSICAL STACKING
* Installable SFP + Transceivers and Direct Attach Copper (DAC) Cables
TXM431-SR
TXM431-LR
TXC432-CU1M
TXC432-CU3M
* Max Number of Stacking Ports Installable
2 SFP +
* No. of Units Per Stack
8
* Stacking Speed (Per Port)
20 Gbps (Full-Duplex)
PERFORMANCE
* Switching Capacity
Up to 176Gbps for a standalone switch
* Packet Forwarding Rate
Up to 130.9Mpps for a standalone switch
* MAC Address Table
32K
* Packet Buffer Memory
4MB
* Jumbo Frame
12KB
* Number of Routes
8K IPv4
* Number of Static Routes
256 IPv4
* Number of IP Interfaces
128 IPv4
SOFTWARE FEATURES
* Quality of Service
Support 802.1p CoS / DSCP priority
Support 8 priority queues
Queue Scheduling: SP, WRR, SP + WRR
Ingress / Egress DiffServ
Port / Flow- based Rate Limiting
Voice VLAN
* L2 Features
IGMP Snooping V1 / V2 / V3
MVR
802.3ad LACP (Up to 64 aggregation groups, 8 ports per group)
Spanning Tree STP / RSTP / MSTP
BPDU Filtering / Guard
TC / Root Protect
Loop back detection
802.3x Flow Control
* VLAN
Supports up to 4K VLANs simultaneously
IEEE 802.1Q VLAN / MAC VLAN / Protocol VLAN / QinQ / Private VLAN / GVRP
* Security
IP-MAC-Port-VID Binding
IEEE 802.1X
AAA
Radius / TACACS + Authentication and Accounting
DoS Defence
Dynamic ARP inspection (DAI)
IP Source Guard
SSH v1 / v2
SSL v2 / v3 / TLSv1
port Security
Access Control list
Broadcast / Multicast / Unknown-unicast Storm Control
* L3 Features
Wire-speed IP forwarding
Static Routing
RIP v1, v2
OSPF v2
ECMP
PIM-SM / PIM-DM / IGMP
DHCP Server / Relay
ARP Proxy
VRRP
* Management
Web-based GUI and CLI management
SNMP v1 / v2c / v3, compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP / BOOTP Client, DHCP Snooping, DHCP Option82
CPU Monitoring
port Mirroring
Time Setting: SNTP
Integrated NDP / NTDP feature
Firmware Upgrade: TFTP & Web
Syslog & Public MIBS
dual Image
IPv6 Management
OTHERS
* Certification
CE, FCC, RoHS
* Package Contents
switch; Power Cord; Quick Installation Guide; Zdrojové CD; Rackmount Kit; Rubber Feet
* System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista ™ alebo Windows 7/8, Mac® OS, NetWare®, UNIX® or Linux.
* Environment
Operating Temperature: 0? ~ 40? (32? ~ 104?)
Storage Temperature: -40? ~ 70? (-40? ~ 158?)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
