UBNT usw-Industrial UNIFEM Switch Industrial USW-INDUSTRIAL

UBNT usw-Industrial UNIFEM Switch Industrial USW-INDUSTRIAL

Usw-INDUSTRIAL

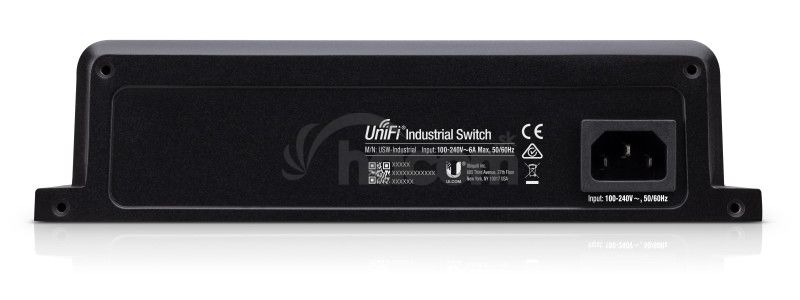

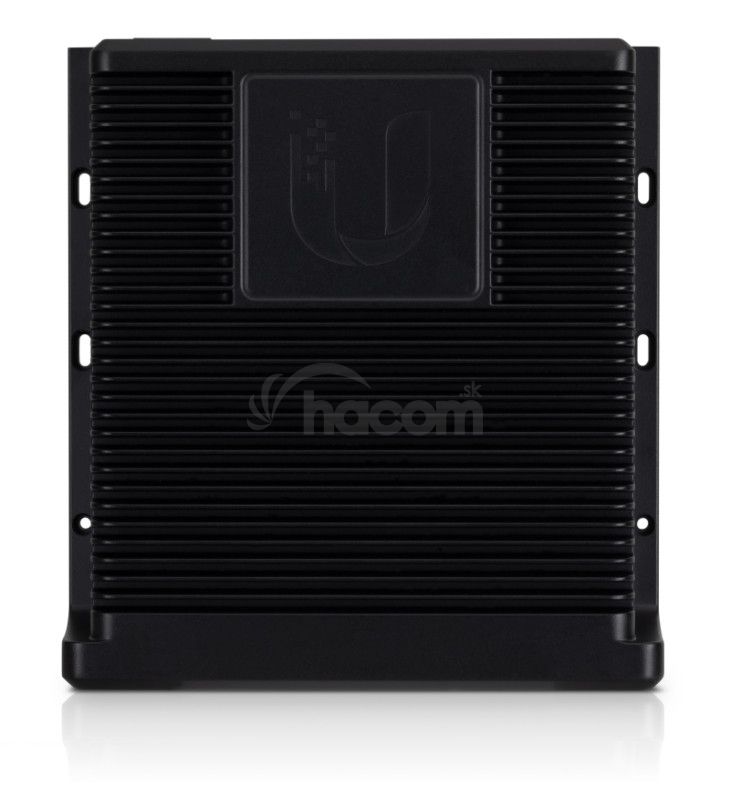

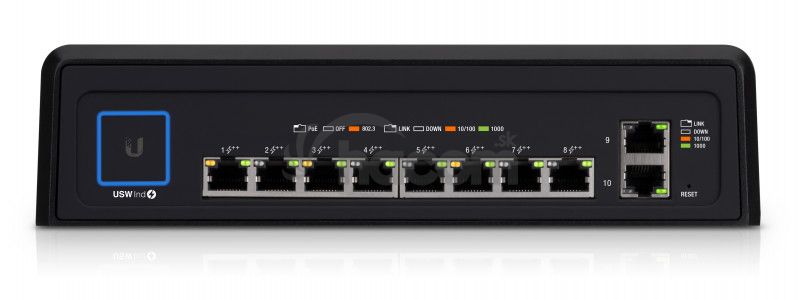

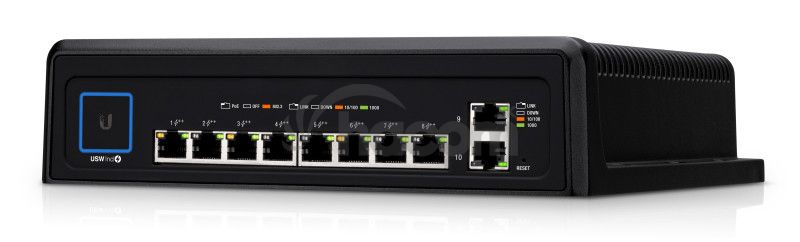

The usw-Industrial is a managed Gigabit Layer 2 switch with auto-sensing, high-power 802.3bt PoE ++ support. It has 10 RJ45 ports total, 8 of which offer PoE ++ (up to 60W per port), ideal for Powering devices like UNIFEM LED Panels, cameras, and APs. Featuring a Ruggedized industrial design, the fanless usw-Industrial is plenum-rated * and can be installed in a horizontal or vertical orientation in plenum spaces. Its die-cast aluminum enclosure has a black, powder coated finish. This provides greater resistance to corrosion and durability in environments with extreme temperature Variations.

Works with UNIFEM Network Controller
Manage Your Networks from a Single Control Plane
Intuitive and Robust Configuration, Control and Monitoring
Remote Firmware Upgrade
Users and Guests
Guest Portal / Hotspot Support

Dimensions 254 x 235 x 60 mm (10 x 9.25 x 2.36 ")
Weight 3.85 kg (8.49 lb)
Enclosure Characteristics Die-Cast Aluminum (ADC12) with Black Powder Coated Finish
interfaces
Networking: (8) 10/100/1000 802.3bt PoE RJ45 Ports, (2) 10/100/1000 RJ45 Ports
Management: Ethernet In-Band
Total Non-Blocking Throughput 10 Gbps
Switching Capacity 20 Gbps
Forwarding Rate 14.88 Mpps
Power Method 100 - 240 VAC, 50/60 Hz Universal Input
Power Supply AC / DC, Internal, 450W DC
Supported Voltage Range AC Input: 100 to 240VAC, Max. 6A
Max. Power Consumption (Excluding PoE Output) 20W
LEDs System: Status
RJ45 Ports: PoE, Speed / Link / Activity
ESD / EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature Internal AC / DC @ 450W: -40 to 50% C (-40 to 122 ° F)
Internal AC / DC @ 240W: -40 to 60 ° C (-40 to 140 ° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC

POE
PoE Interfaces PoE ++ IEEE 802.3bt
(Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Max. PoE Wattage per Port by PSE 802.3bt 60W
Voltage Range 802.3 PoE Mode 50-57V
Max. Total PoE Power Budget 430W
