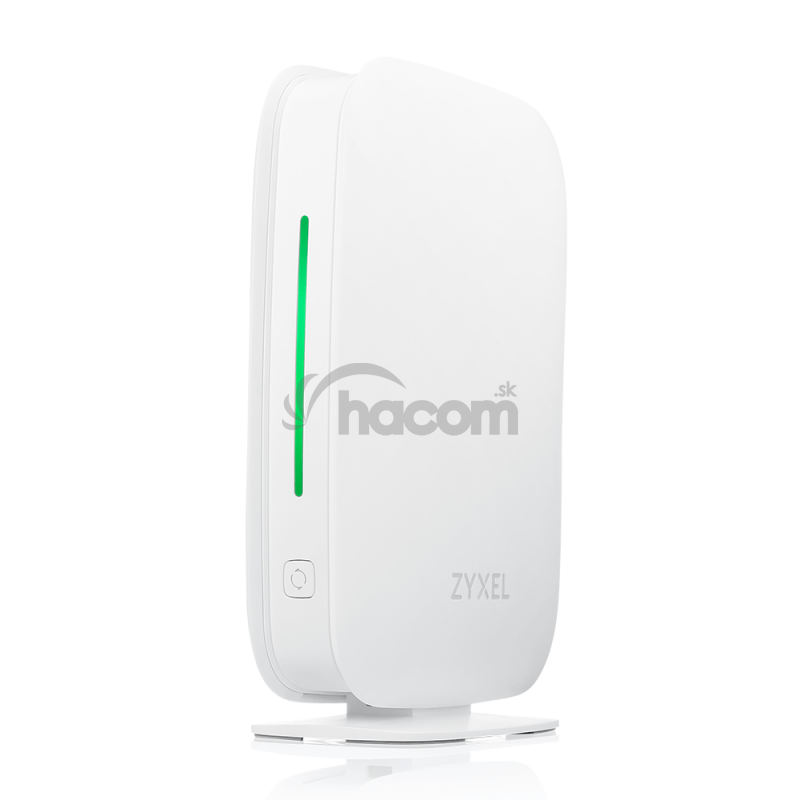

ZYXEL Multy M1 WiFi System (1-Pack) AX1800 Dual-Band WiFi WSM20-EU0101F

ZYXEL Multy M1 WiFi System (1-Pack) AX1800 Dual-Band WiFi WSM20-EU0101F

Speed Rating (per unit)

WiFi 6 AX1800 (574 + 1201 Mbps)
Wireless Standard

IEEE 802.11 b/g/n/ax 2.4 GHz
IEEE 802.11 b/n/ac/ax 5 GHz
2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574 Mbps
5GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40/80MHz, up to 1201 Mbps
Compatible with 802.11a/b/g/n/ac WiFi štandards
Transmission Speed

Transmit & Receive:
574Mbps* for 2.4 GHz
1201Mbps* for 5 GHz
MU-MIMO capable for simultaneous data streaming
Beamforming for 2.4GHz & 5GHz bandsCellular and Ethernet WAN failover and failback

Multy app

Easy to setup
Support myZyxelCloud SSO (Single-Sign-On) systém
Support location check to suggest Multý nod placement for better signal strength and coverage
Support Internet access control
Block or allow špecifická skupina založená na čase schedule
Support guest network setting
Share network name and password via QR code for guests
Monitor of active concurrent guest devices connected
Diagnose network via speed test
Push notification
New device connected
New firmware available
Speed test result
Remote management
Automatic updates for new features
Support language: EN/ZH/DE/ES/FR/IT/PT

Security
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
VPN Client/Server Support (OpenVPN)
WPA3-PSK
WPS Support
Guest Network
Automatic Firmware Update
Wireless Features
Guest WiFi
WiFi Protected Setup (WPS)
WiFi Multimedia (WMM)
Auto channel selection
4 SSIDs for multiple purpose
Multicast-Unicast Conversion
Traffic separation from host network
Band Steering
AP Steering
Routing Protocols
Typ WAN: Static IP, DHCP, PPPoE
IGMP v1/v2
Auto-IP change
IPv4/IPv6
Network Address Translation (NAT)
DHCP server/client
Dynamic DNS
Firewall
Stateful Packet Inspection (SPI)
Deny of Service (DoS) Prevention
MAC Filter
TCP/IP Filter
Operation Mode
Standard mode (Router mode)
Bridge mode (Access point mode)
Web Browser
Advanced wired & wireless setup and management
Diagnose & speed test
Parental Control

CPU: 880 MHz Dual-Core
Memory: 256MB RAM
Flash: NAND Flash 128MB
Antenna: 2 Dual-Band Internal Antennas
Buttons:
LED On/Off
WPS
Reset
WAN: One 10/100/1000 Mbps Ethernet RJ-45 port s autom MDI/MDIX support
LAN : Three 10/100/1000 Mbps Ethernet RJ-45 porty s autom MDI/MDIX support
LED indikátor: Status indication
Power: 12 V DC, 1.5 A
Power consumption: 15 watt

Item dimensions (LxWxH): 192 x 133 x 66 mm (7.55” x 5.23” x 2.59”)
Item weight: 254 g (0.56 lb.)
Packing dimensions (LxWxH): 281x 238 x 151mm (11.06” x 9.37” x 5.94)
Packing hmotnosť: Pack of Two: 1.72Kg (3.79 lb.)

Operating Environment

Temperatúra: 0°C až 40°C (32°F až 104°F)
Humidity: 10% až 90% (Non-condensing)
Storage Environment

Temperature: -30°C až 70°C (-22°F až 158°F)
Humidity: 10% až 90% (Non-condensing)

Safety: CE-LVD, BSMI
EMC: CE, FCC, BSMI, NCC

Pack of Two
Root x 1, Satellite x 1
Ethernet cable Cat5e x1
Power adapter x 2 (White, 90 degree elbow, fix EU/US plug)
Mounting kit x 2 (Wall mounting base)
