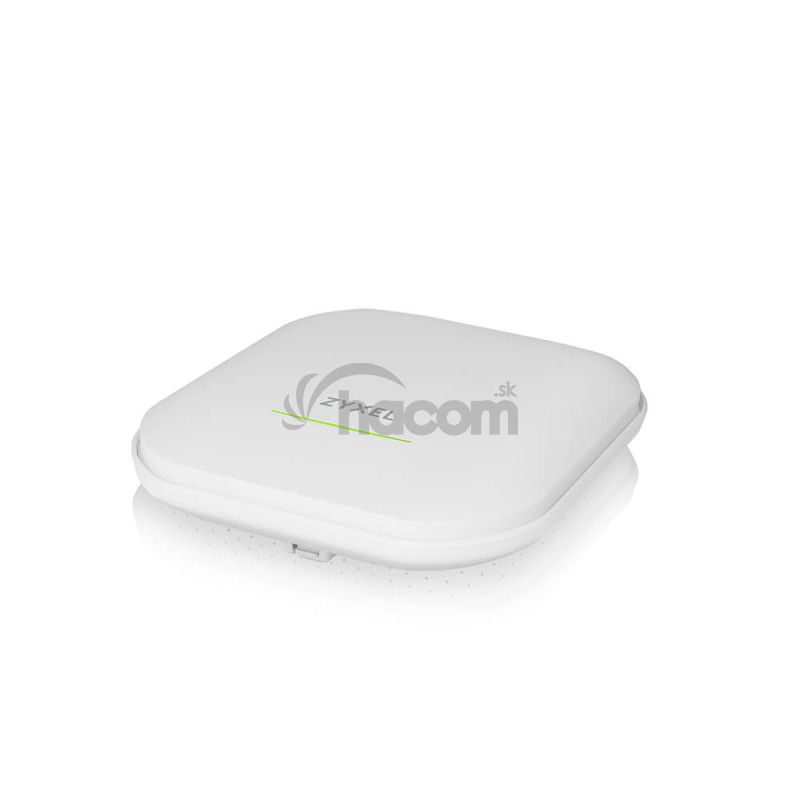

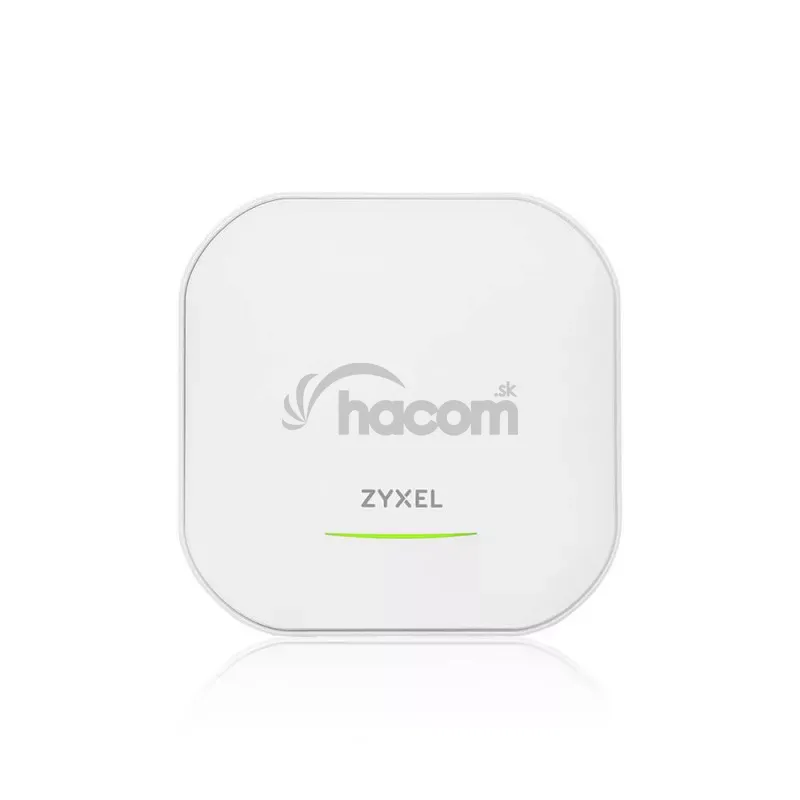

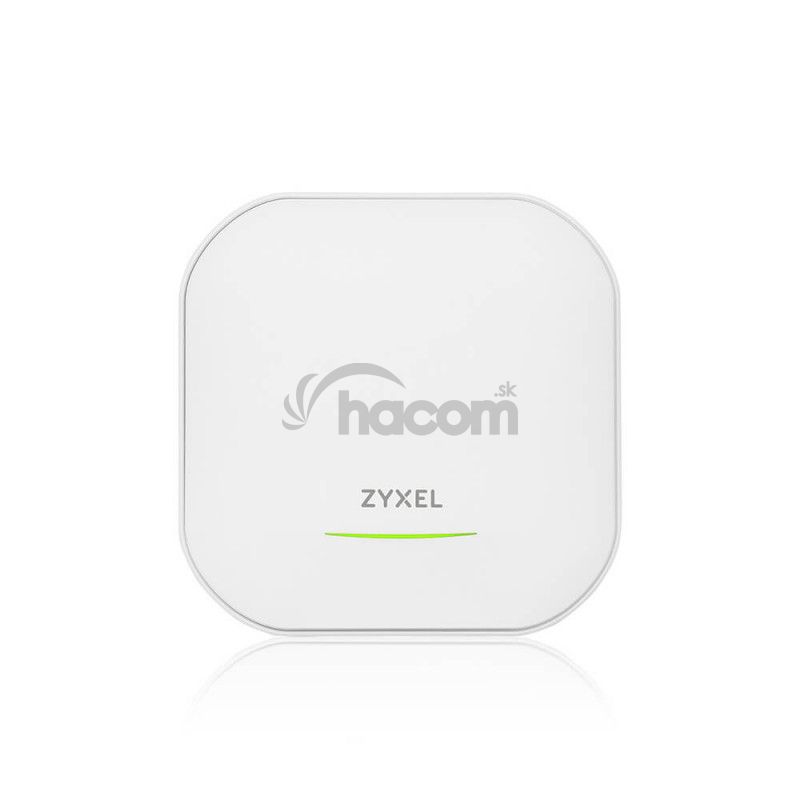

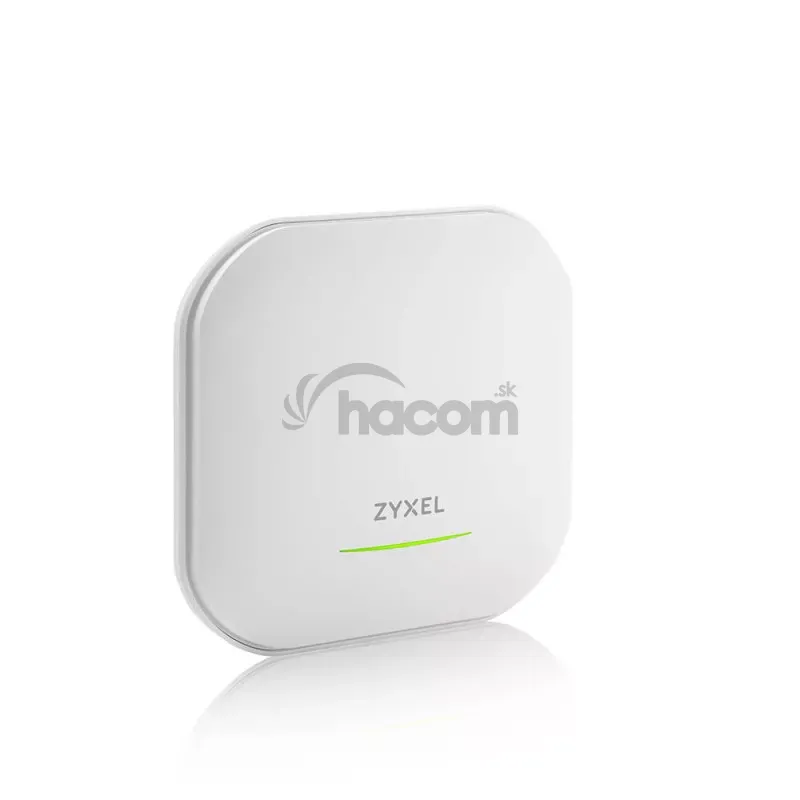

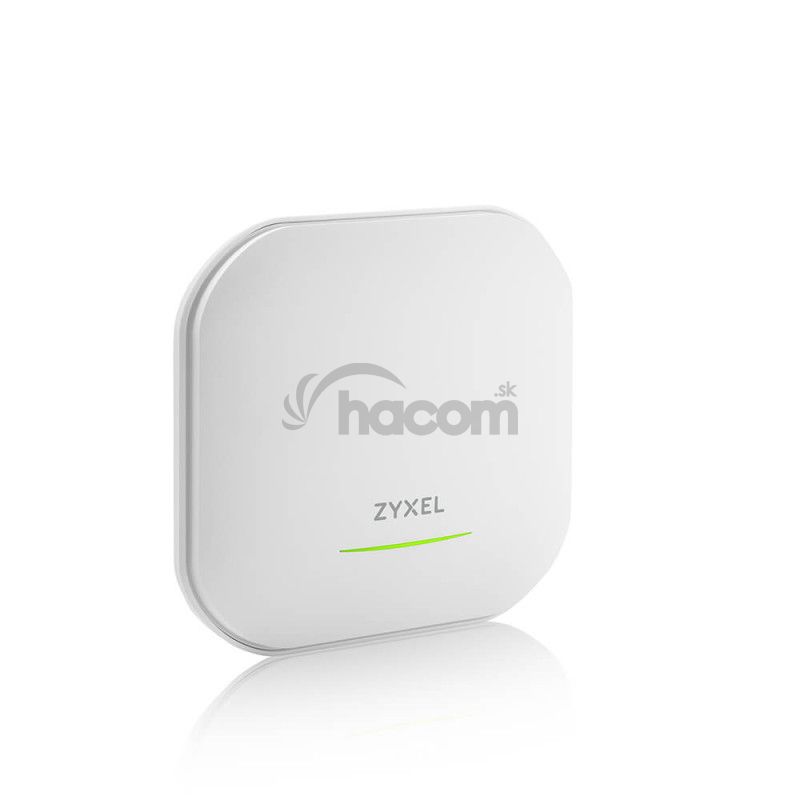

ZYXEL NWA220AX-6E,Standalone/NebulaFlex Outdoor WIFI NWA220AX-6E-EU0101F

Výrobca:
ZYXEL
Obj. čislo:
50100221267
Part number:
NWA220AX-6E-EU0101F
Záruka:
24 mesiacov
Doba dodania:
doručenie kuriérom DPD 24-48hod.

323,85 € s DPH / ks 269,88 € bez DPH / ks

+ -

Tovar je skladom

Prepravné už od 2,30 €

Tel. objednávky: 0948 979 979

Kúpiť na splátky

ZYXEL NWA220AX-6E,Standalone/NebulaFlex Outdoor WIFI NWA220AX-6E-EU0101F

Description: 802.11ax (WiFi 6E) Dual-Radio Unified Pro Access Point

Wireless
Štandard: IEEE 802.11 ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed :
*2.4GHz: 575 Mbps
*5GHz: 4800 Mbps
*6GHz: 4800 Mbps
Frequency band:
*2.4 GHz
*USA (FCC): 2.412 to 2.462 GHz
*Europe (ETSI): 2.412 to 2.472 GHz
*5 GHz
*USA (FCC): 5,15 až 5,35 GHz; 5.470 to 5.850 GHz
*European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
*6 GHz
*USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz
*European (ETSI): 5.925 to 6.425 GHz
Bandwidth: 20-, 40-,80- a 160-MHz
Conducted typical transmit output power:
*US (2.4GHz/5GHz) alebo +/6GHz): 24/28/24dBm
*EU (2.4GHz/5GHz) or +/6GHz): 18/25/19dBm

RF Design
Antenna type: 4x4 + 2x2 Dual-optimized Antenna
Antenna gain:
*2.4 GHz: Peak Gain 3dBi
*5 GHz: Peak Gain 5dBi
*6 GHz: Peak Gain 6dBi
Minimum Receive sensitivity: Min. Rx sensitivity up to -101 dBm

WLAN feature
Band Steering: Yes
WDS/Mesh: Yes
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
DCS: Yes
Load balancing : Yes
Advanced Cellular Coexistencia: Yes

Security
*Encryption
*WEP
*WPA
*WPA2-PSK
*WPA3
Authentication:
*WPA
*WPA2
*WPA3-Enterprise
*EAP
*IEEE 802.1X
*RADIUS authentication
Access management:
*L2-isolation
*MAC filtering
*Rogue AP detection

Networking
IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes

Management
Operating mode:
*Nebula Cloud managed
*Controller-managed
*Standalone
ZON Utility:
*Discovery of Zyxel switches, APs and gateways
*Centralized and batch configurations
*IP configuration
*IP renew
*Device reboot
*Device locating
*Web GUI access
*Firmware upgrade
*Password configuration
Zyxel Wireless Optimizer:
*WiFi AP planning
*WiFi coverage detection
*Wireless health management
Web UI/CLI: Yes
SNMP: Yes

Physical Specifications
Item
Dimensions (WxDxH)(mm/in.): 180 x 180 x 42 mm / 7.09 x 7.09 x 1.65
Weight (g/lb.): 650g/1.43lb
Packing
Dimensions (WxDxH)(mm/in.): 197 x 190 x 60 mm / 7.76 x 7.48 x 2.36
Weight (g/lb.): 780g/1.72lb
Included accessories:
*Mount plate
*Mounting screws
MTBF (hr): 711 333

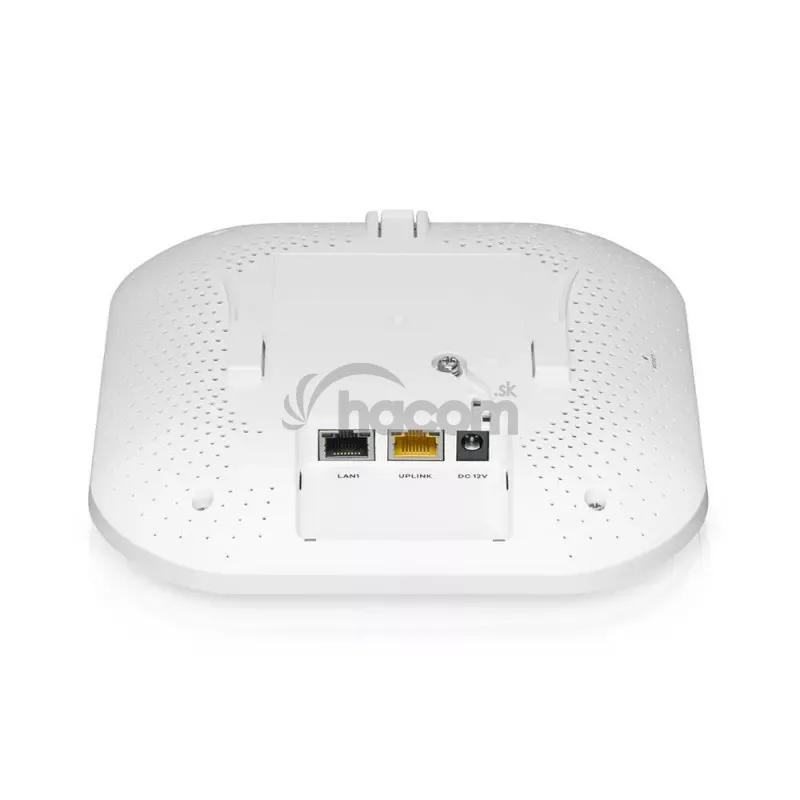

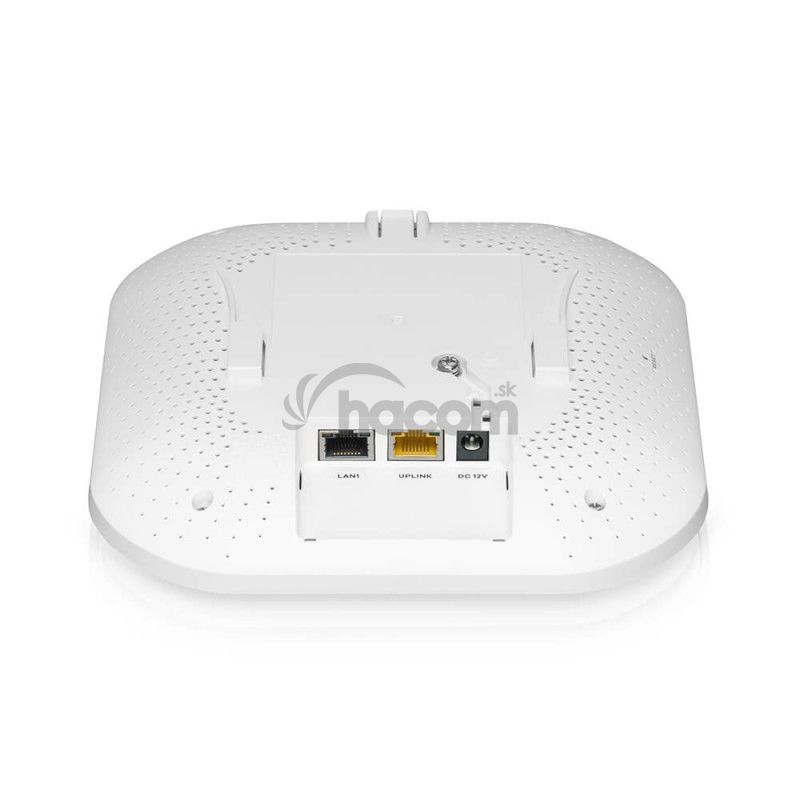

Physical Interfaces
Ethernet port:
*1 x 1/2.5Gbps LAN
*1 x 1Gbps LAN
Power:
*PoE (802.3)at: power draw 21 W
*DC input : 12 VDC 2A
PoE Modes:
*IEEE802.3af: No Wireless
*IEEE802.3at: Unrestricted
*IEEE802.3bt: Unrestricted
