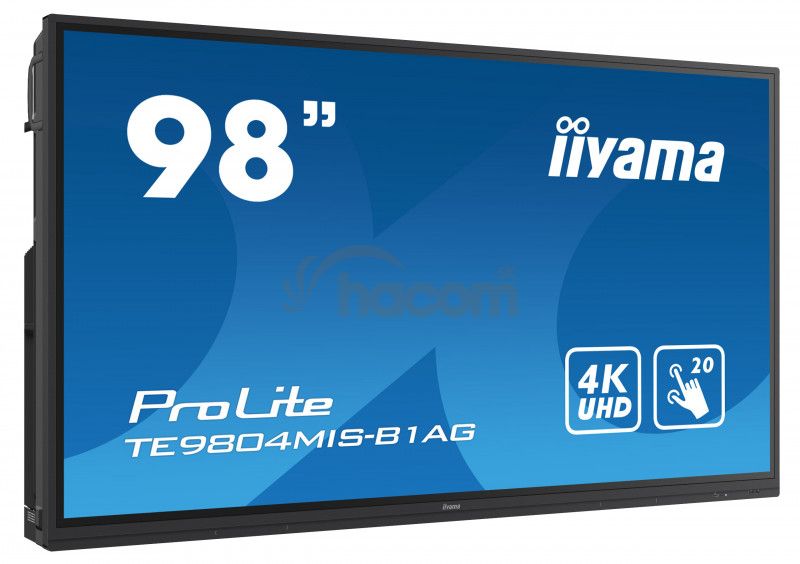

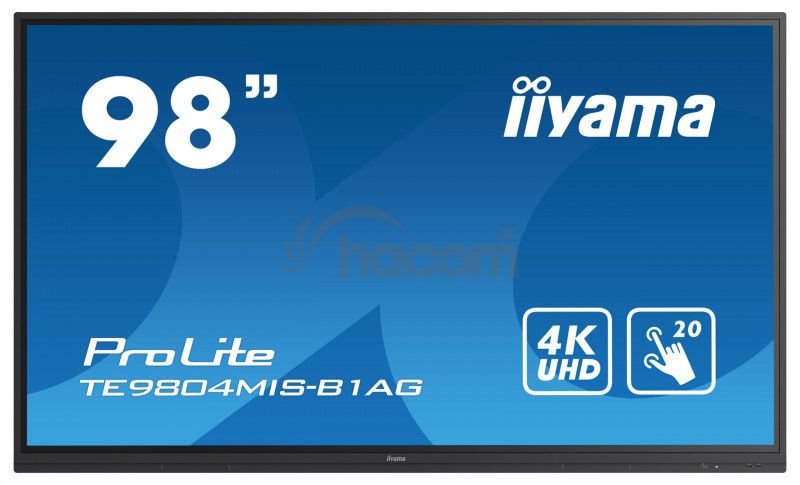

98 "iiyama TE9804MIS-B1AG: IPS, 4K, 400cd / m2, 24/7, iiWare, WiFi, 4x Touch Pen, HDMI, USB-C, 20P TE9804MIS-B1AG

98 "iiyama TE9804MIS-B1AG: IPS, 4K, 400cd / m2, 24/7, iiWare, WiFi, 4x Touch Pen, HDMI, USB-C, 20P TE9804MIS-B1AG

98 '' Interactive 4K UHD LCD Touchscreen with integrated annotation softvér

Captivate your audience with the ProLite TE9804MIS-B1AG; a perfect solution for educational and corporate use. Its 98 '' PureTouch-IR 20-point touchscreen with iiWare 9.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro. It comes with dual function touch pens, allowing users to Annotate easily in 4K on files and on-screen content which can be saved directly to a USB device, 32GB internal memory or a selected cloud drive. The display supports playback of presentations, high-resolution video and almost any other type of content. Now with additional USB-C connection to support the latest in video, audio and touch signal via a single port and even charge your device with 65W power delivery.

The high-quality commercial IPS LCD screen with a 4K UHD resolution (3840x2160), 350cd / m2 and a kontrast ratio of 1200: 1 provide vibrant, detailed and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image. The screen has a 24/7 non-stop operating time and is equipped with an all-metal bezel, 4mm thick hardened glass to ensure robust durability in high-use environments such as CLASSROOMS or meeting rooms.

Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM001), the ScreenSharePro and EShare app.

PARAMETRE DISPLEJA

Dizajn: tenký rámik
Uhlopriečka: 98 ", 247.7 cm
Panel: IPS LED, AG coated glass, zero air-gap
Nativiní rozlíšenie: 3840 x 2160 (8.3 Megapixel 4K UHD)
Pomer strán: 16: 9
Jas: 400 cd / m2
Statický kontrast: 1200: 1
Dynamický kontrast: 3500: 1
Priepustnosť svetla: 88%
Doba odozvy: 8ms
Pozorovacie uhly: 178 ° / 178 °
Rozsah farieb: 1.07 miliárd 10bit
Horizontálna synchronizácia .: 30-80KHz
Rozstup bodov .: 0.5622 mm
Farba: matná čierna

DOTYK

Technológia dotyku: PureTouch-IR
Body dotyku: 20
Metóda dotyku: stylus, prst, rukavice
Rozhranie dotyku: USB

KONEKTIVITA

Analógové vstupné porty:
* 1x VGA (max. 1920x1080 @ 60Hz)
Digitálne vstupné porty:
* 3x HDMI 2.0 (max. 3840x2160 @ 60Hz)
* 1x USB 3.1 Type-C (max. 3840x2160 @ 60Hz) + 65W PowerDelivery
Riadiaci vstup monitora:
* 1x RS-232c
* 1x RJ-45
Audio In:
* 1x Mini jack
Audio Out:
* 1x S / PDIF
* 1x Mini Jack
Ostatné porty: USB Hub (4x USB 3.0, 1x USB 3.1 Type-C)
HDCP ÁNO

FUNKCIE

Integrovaný softvér: iiWare 9.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office, ScreenSharePro and EShare for wireless connection with Windows / iOS / Android devices
Hardware: Quad core A73 CPU, Mali G52 GPU, 4GB RAM, 32GB internal memory
WiFi: ÁNO (WiFi Module OWM002 - Dual WiFi Bandwidth: 2.4GHz / 5GHz, WiFi Standard: IIEEE 802.11 a / b / g / n / ac, Bluetooth Support: 2.1 / 3.0 / 4.2 / 5.0)
Mód kiosku: ÁNO
Maximálna prevádzková doba: 24/7
Médiá Playback: ÁNO
Hrúbka skla: 4 mm
Tvrdosť skla: 7H
Materiál rámčekov: hliník
OSD Key Lock: ÁNO
Zvláštne funkcie: Ambient light sensor, OTA firmware update

MECHANICKÉ INFORMÁCIE

Orientácia: horizontálna
VESA: 800 x 600 mm

OBSAH BALENIA

Káble: napájací kábel, USB, HDMI
Príručky: sprievodca rýchlym spustením, bezpečnostné sprievodca
Ďalšie: 4x Touch Pen, diaľkové ovládanie (vrátane batérií), Mounting bracket for NUC, Mounting bracket for webcam

NAPÁJANIE

Napájací adaptér: interný
Zdroj: AC AC - 100V, 240 / V, 50Hz / 60Hz
Odber energie: 222W (0,5W Stand By / Off Mode)

UDRŽATEĽNOSŤ

Normy: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS, PFOS, PFC)
Energetická trieda: neuvedené
Ďalšie: REACH SVHC above 0.1%: Lead

ROZMERY A HMOTNOSŤ

Rozmery (ŠxVxH): 2244 x 1323 x 90 mm
Hmotnosť: 103,5 kg
EAN: 4948570118984

Stránky výrobcu: https://iiyama.com/gl_en/products/prolite-te9804mis-b1ag/
